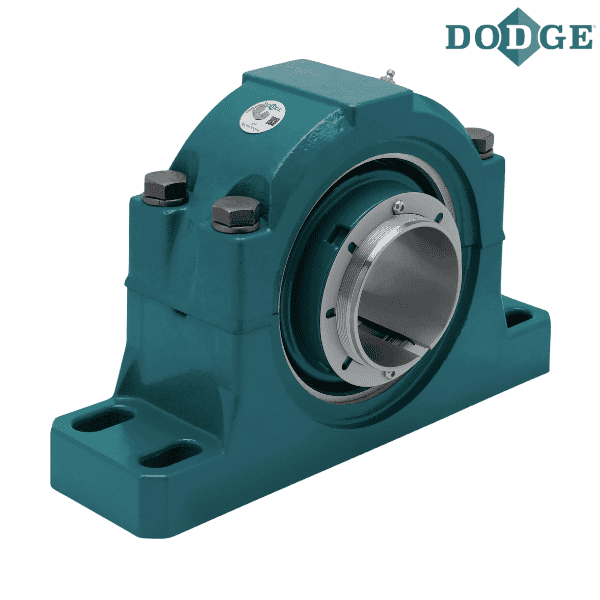

DODGE - P4B528-ISAF-125MRE


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - P4B528-ISAF-125MRE
Category - IMPERIAL ISAF 4-Bolt with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22226
Shaft Size (mm) - 125
Part Name - P4B528-ISAF-125MRE
SAF Series - 528
Length Through Bore (A) mm - 151.89
Overall Length (B) mm - 500.38
Width (C) mm - 149.35
Bolt to Bolt Minimum Distance (D min) mm - 397
Bolt to Bolt Maximum Distance (D max) mm - 441.45
E (mm) - 85.85
F-Bolt Diameter - M24
G (mm) - 50.8
H (mm) - 52.32
Overall Height (J) mm - 315.21
L (mm) - 193.8
Base to Center Height (M) mm - 152.4
P (mm) - 339.85
S (mm) - 93.73
Expansion (X) mm - 9.53
Y (mm) - 1.02
Z (mm) - 148.34
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
M - Metric
R - TRIDENT Triple Lip Contact Seal
E - Expansion

** Images are representation purposes only
