Description
Brand - DODGE
Item Number - DODGE - P4B526-ISAF-115ML
Category - IMPERIAL ISAF 4-Bolt with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22226
Shaft Size (mm) - 115
Part Name - P4B526-ISAF-115ML
SAF Series - 526
Length Through Bore (A) mm - 132.84
Overall Length (B) mm - 466.85
Width (C) mm - 130.3
Bolt to Bolt Minimum Distance (D min) mm - 368.3
Bolt to Bolt Maximum Distance (D max) mm - 406.4
E (mm) - 82.55
F-Bolt Diameter - M22
G (mm) - 44.45
H (mm) - 52.32
Overall Height (J) mm - 296.16
L (mm) - 163.58
Base to Center Height (M) mm - 152.4
P (mm) - 316.74
S (mm) - 78.49
Expansion (X) mm - 9.53
Y (mm) - 1.02
Z (mm) - 127
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P4B - Pillow Block 4 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
M - Metric
L - Labyrinth Metallic Seal

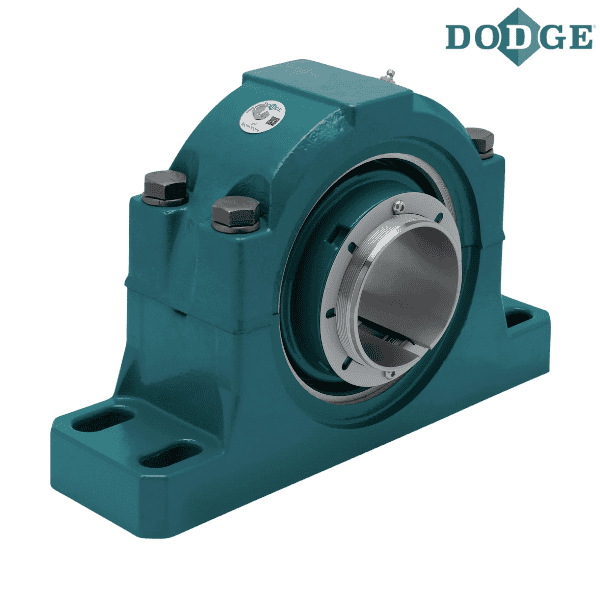

** Images are representation purposes only
