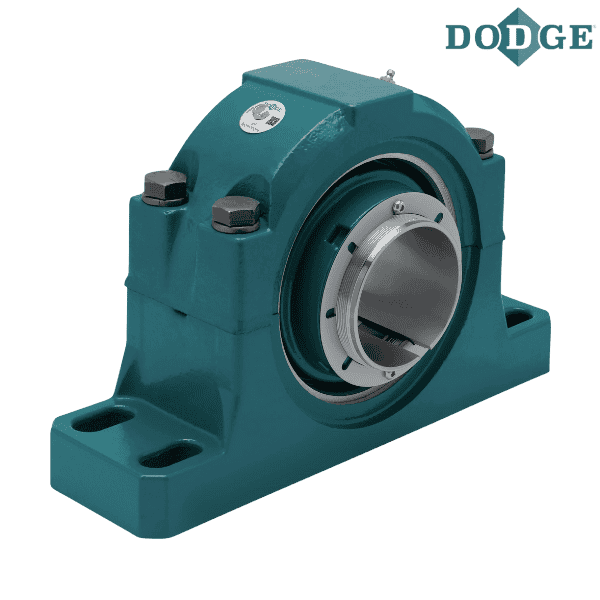

DODGE - P4B520-ISAF-085ML


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - P4B520-ISAF-085ML
Category - IMPERIAL ISAF 4-Bolt with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (mm) - 85
Part Name - P4B520-ISAF-085ML
SAF Series - 520

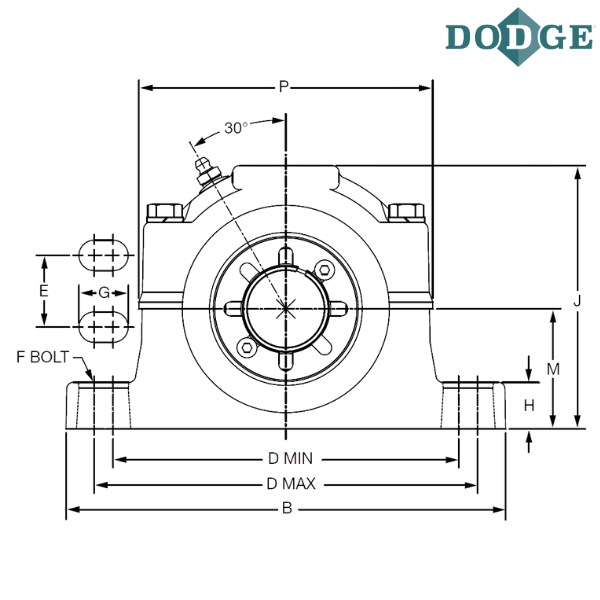

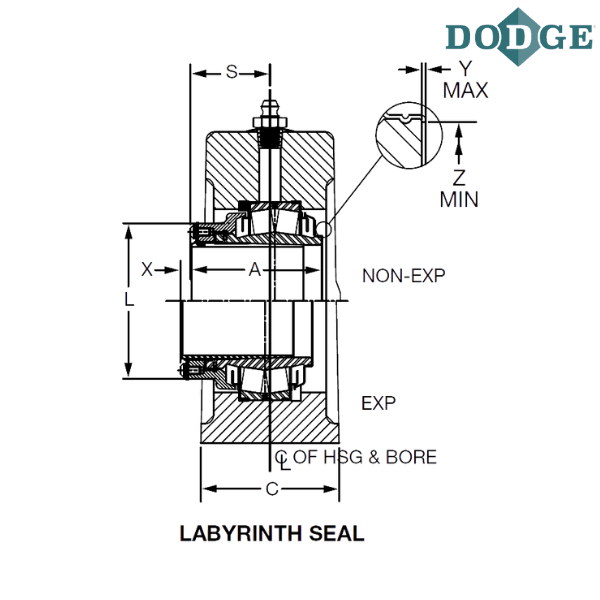

Length Through Bore (A) mm - 105.66
Overall Length (B) mm - 390.14
Width (C) mm - 110.24
Bolt to Bolt Minimum Distance (D min) mm - 299.97
Bolt to Bolt Maximum Distance (D max) mm - 333.5
E (mm) - 60.45
F-Bolt Diameter - M20
G (mm) - 41.4
H (mm) - 40.64
Overall Height (J) mm - 234.95
L (mm) - 127
Base to Center Height (M) mm - 114.3
P (mm) - 257.3
S (mm) - 62.99
Expansion (X) mm - 9.53
Y (mm) - 0.76
Z (mm) - 102.87
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
M - Metric
L - Labyrinth Metallic Seal

** Images are representation purposes only
