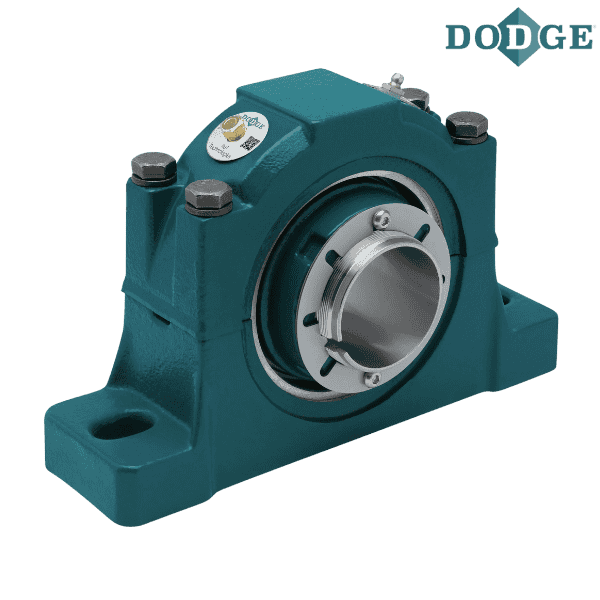

DODGE - P2B513-ISAF-060MRE

Brand - DODGE
Item Number - DODGE - P2B513-ISAF-060MRE
Category - IMPERIAL ISAF 2-Bolt with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22213
Shaft Size (mm) - 60
Part Name - P2B513-ISAF-060MRE
SAF Series - 513

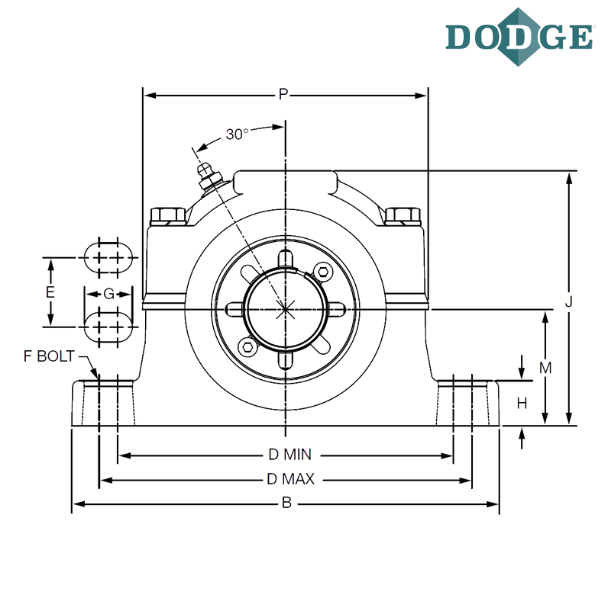

Length Through Bore (A) mm - 76.96
Overall Length (B) mm - 279.4
Width (C) mm - 82.55
Bolt to Bolt Minimum Distance (D min) mm - 218.44
Bolt to Bolt Maximum Distance (D max) mm - 241.3
F-Bolt Diameter - M16
G (mm) - 29.46
H (mm) - 26.16
Overall Height (J) mm - 161.04
L (mm) - 88.9
Base to Center Height (M) mm - 76.2
P (mm) - 177.04
S (mm) - 47.75
Expansion (X) mm - 5.56
Y (mm) - 0.76
Z (mm) - 65.79
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
M - Metric
R - TRIDENT Triple Lip Contact Seal
E - Expansion

** Images are for representation purposes only
