Description
Brand - DODGE
Item Number - DODGE - P2B511-ISAF-050ML
Category - IMPERIAL ISAF 2-Bolt with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22210
Shaft Size (mm) - 50
Part Name - P2B511-ISAF-050ML
SAF Series - 511

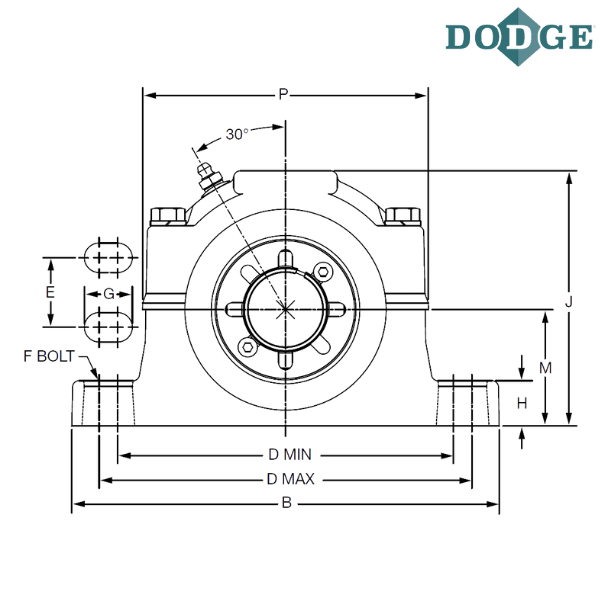

Length Through Bore (A) mm - 72.64
Overall Length (B) mm - 244.6
Width (C) mm - 69.85
Bolt to Bolt Minimum Distance (D min) mm - 187.45
Bolt to Bolt Maximum Distance (D max) mm - 209.55
F-Bolt Diameter - M16
G (mm) - 30.48
H (mm) - 26.16
Overall Height (J) mm - 151.64
L (mm) - 83.31
Base to Center Height (M) mm - 69.85
P (mm) - 162.05
S (mm) - 43.94
Expansion (X) mm - 6.75
Y (mm) - 0.51
Z (mm) - 58.42
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
M - Metric
L - Labyrinth Metallic Seal
** Images are representation purposes only
