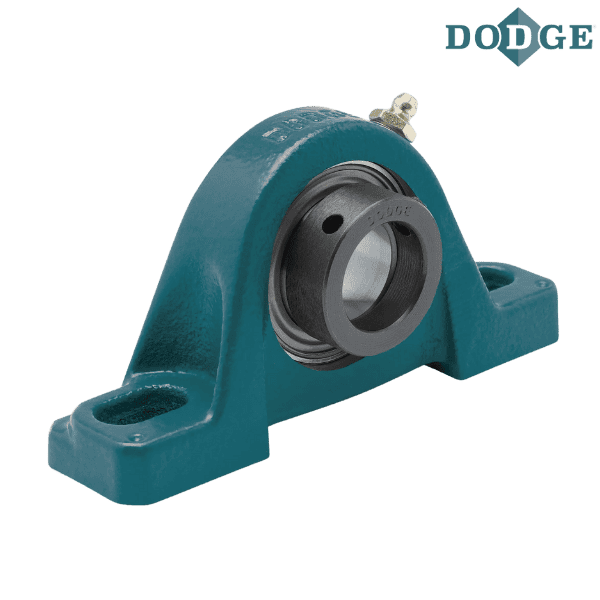

DODGE - P2B-SXVB-20M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - P2B-SXVB-20M
Category - Eccentric SXV Collar Ball Bearings (SXVB Intermediate Duty Pillow Blocks)
Series - 204
Shaft Size (mm) - 20
Description - P2B-SXVB-20M
Weight (kg) - 0.6

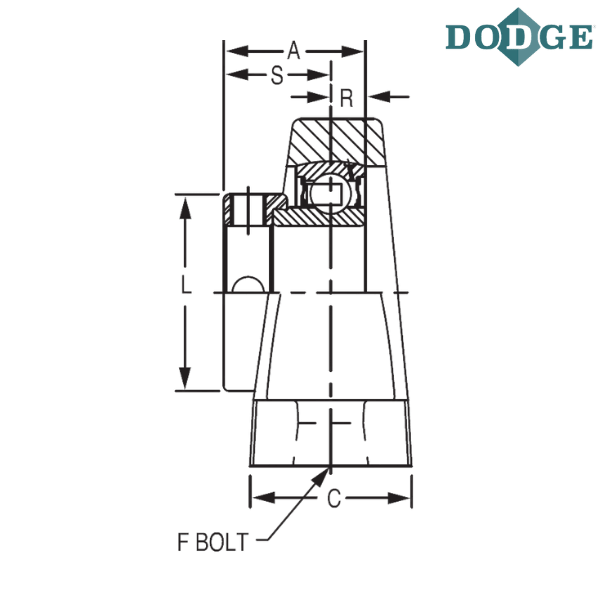

Length Through Bore (A) mm - 31

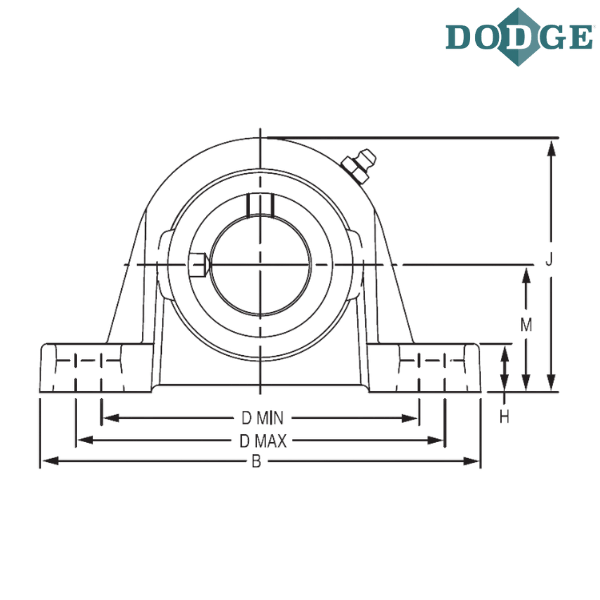

Overall Length (B) mm - 133.4
Width (C) mm - 34
Bolt to Bolt Minimum Distance (D min) mm - 85.9
Bolt to Bolt Maximum Distance (D max) mm - 106.4
F-Bolt Diameter - M10
G (mm) - 21.6
H (mm) - 11.9
Overall Height (J) mm - 63.2
L (mm) - 33.3
Base to Center Height (M) mm - 31.8
R (mm) - 7.6
S (mm) - 23.4

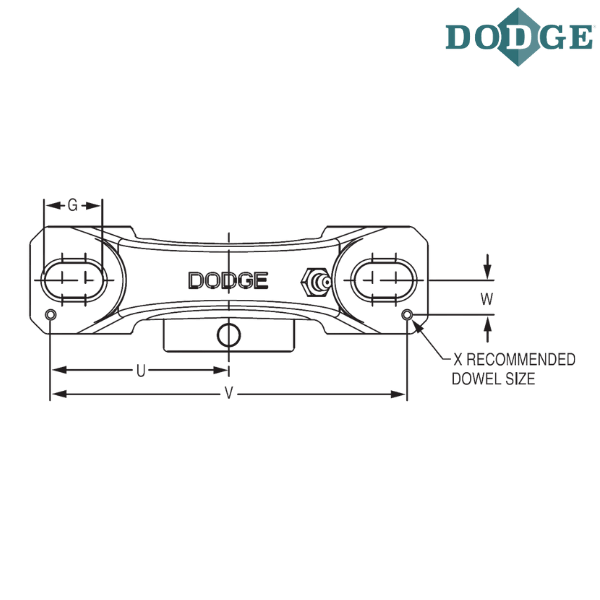

U (mm) - 57.2
V (mm) - 114.3
W (mm) - 12.7
X (mm) - 0.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
B - Low backing height pillow block
M - Metric

** Images are for representation purposes only
