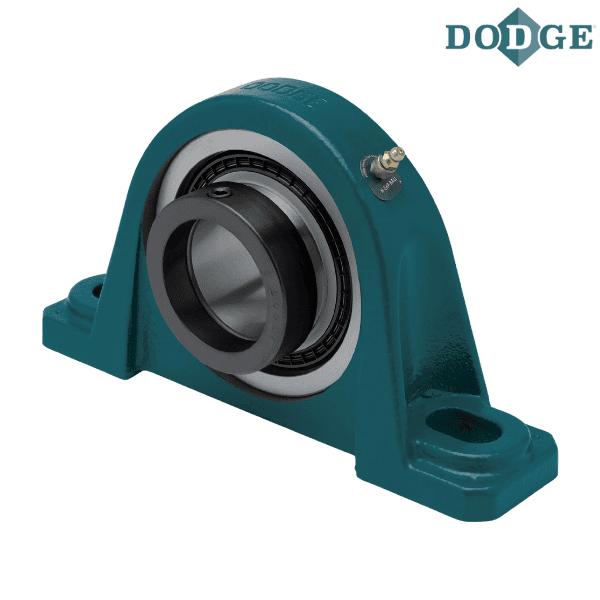

DODGE - P2B-SXRH-45M-E

Brand - DODGE
Item Number - DODGE - P2B-SXRH-45M-E
Category - Eccentric Collar Ball Bearings (SXRH-E Expansion and SXR Non-Expansion Normal Duty Pillow Blocks)
Series - 209
Shaft Size (mm) - 45
Description - P2B-SXRH-45M-E
Part Number (Non-Expansion) - 136261
Description (Non-Expansion) - P2B-GTM-45M
Weight (kg) - 4.1

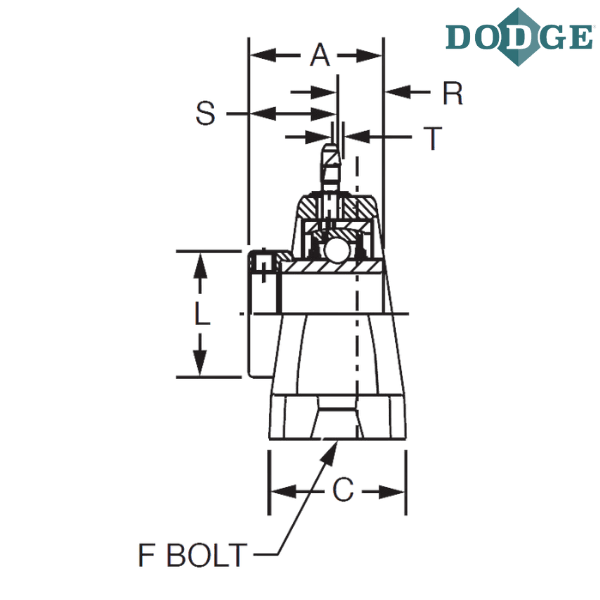

Length Through Bore (A) mm - 54.1

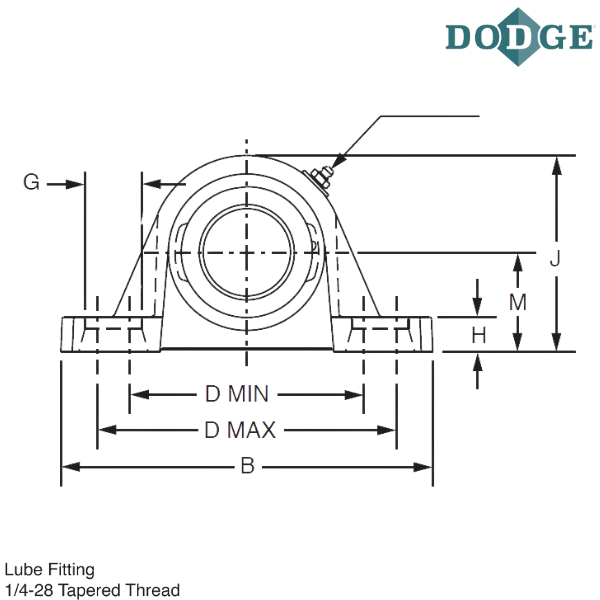

Overall Length (B) mm - 206.2
Width (C) mm - 57.2
Bolt to Bolt Minimum Distance (D min) mm - 152.4
Bolt to Bolt Maximum Distance (D max) mm - 169.7
F-Bolt Diameter - M16
G (mm) - 25.9
H (mm) - 19.1
Overall Height (J) mm - 115.1
L (mm) - 63.5
M (mm) - 57.2
R (mm) - 19.1
S (mm) - 35.1
Total Expansion (T) mm - 6.4

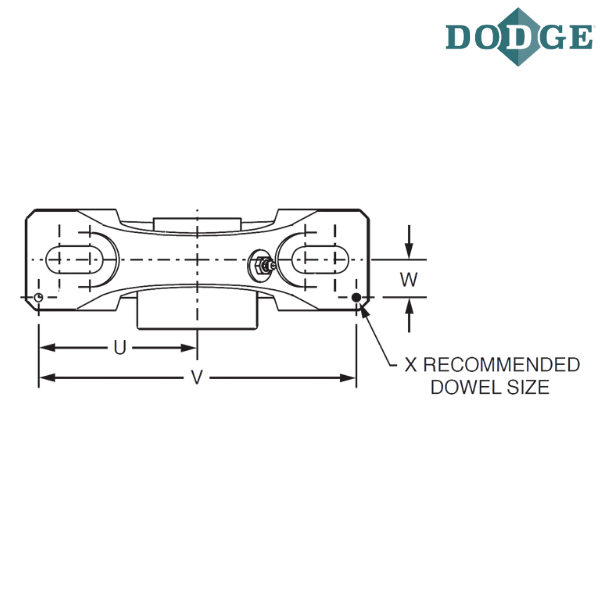

U (mm) - 93.7
V (mm) - 187.5
W (mm) - 20.6
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
H - High backing height
M - Metric
E - Expansion

** Images are for representation purposes only
