DODGE - P2B-SXRH-30M-E

Brand - DODGE
Item Number - DODGE - P2B-SXRH-30M-E
Category - Eccentric Collar Ball Bearings (SXRH-E Expansion and SXR Non-Expansion Normal Duty Pillow Blocks)
Series - 206
Shaft Size (mm) - 30
Description - P2B-SXRH-30M-E
Part Number (Non-Expansion) - 129049
Description (Non-Expansion) - P2B-GTM-30M
Weight (kg) - 2.3

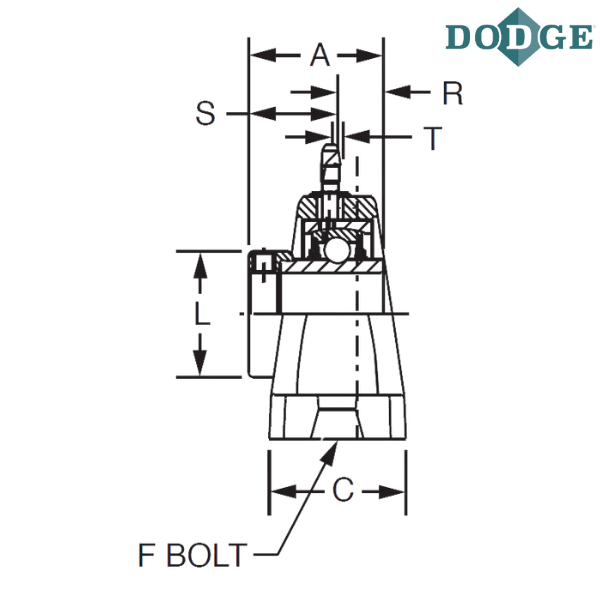

Length Through Bore (A) mm - 45

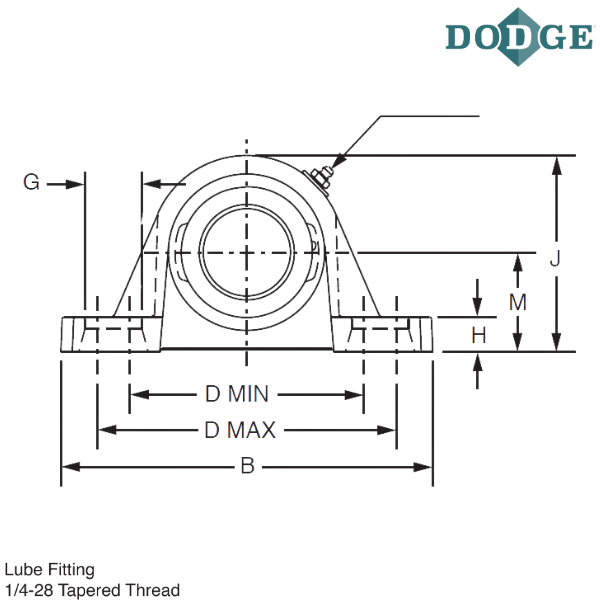

Overall Length (B) mm - 165.1
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) mm - 118.9
Bolt to Bolt Maximum Distance (D max) mm - 138.2
F-Bolt Diameter - M12
G (mm) - 23.9
H (mm) - 18
Overall Height (J) mm - 95.3
L (mm) - 44.5
M (mm) - 47.8
R (mm) - 14.7
S (mm) - 30.2
Total Expansion (T) mm - 4.1

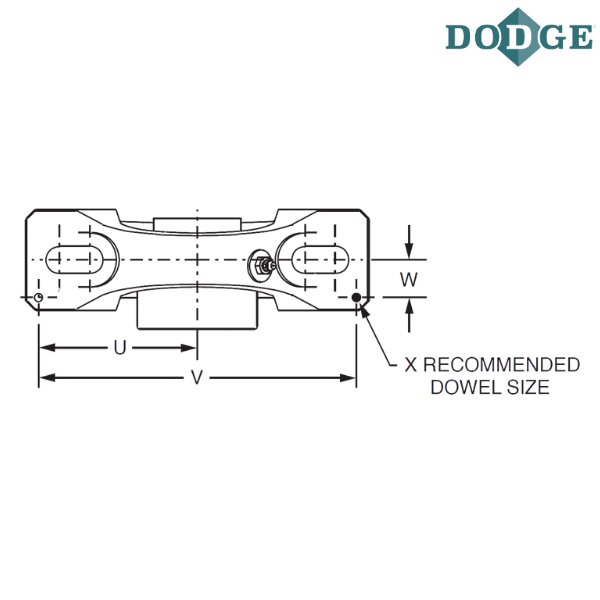

U (mm) - 73.9
V (mm) - 147.8
W (mm) - 14.2
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
H - High backing height
M - Metric
E - Expansion

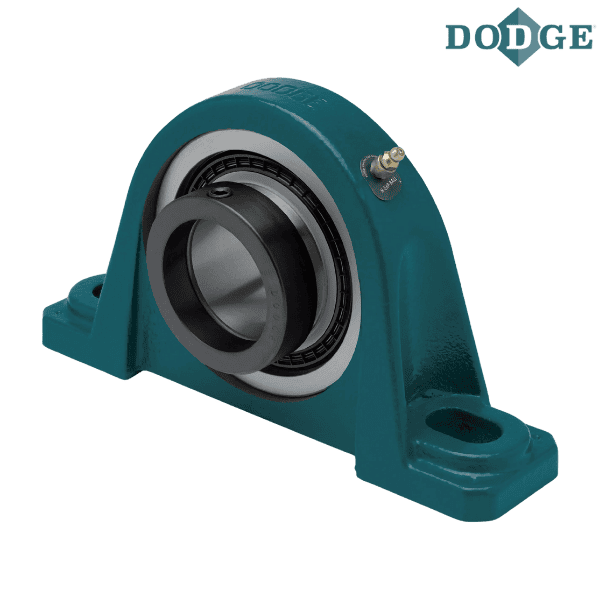

** Images are for representation purposes only
