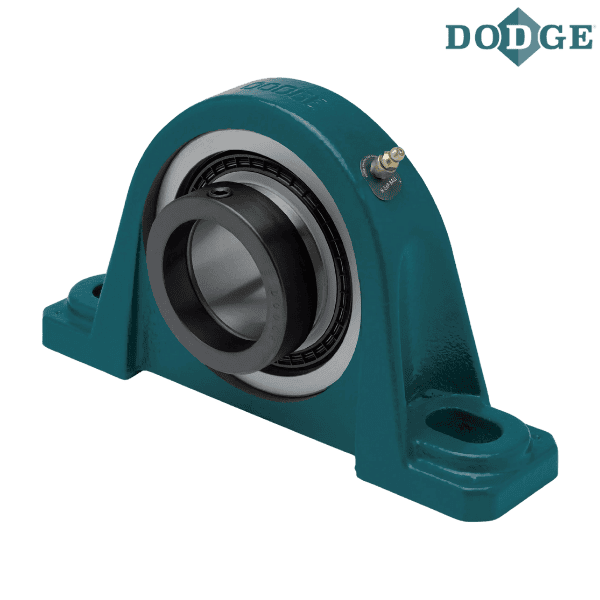

DODGE - P2B-SXRH-200-E

Brand - DODGE
Item Number - DODGE - P2B-SXRH-200-E
Category - Eccentric Collar Ball Bearings (SXRH-E Expansion and SXR Non-Expansion Normal Duty Pillow Blocks)
Series - 210
Shaft Size (inch) - 2.0
Description - P2B-SXRH-200-E
Part Number (Non-Expansion) - 129224
Description (Non-Expansion) - P2B-GTM-200
Weight (lbs) - 11

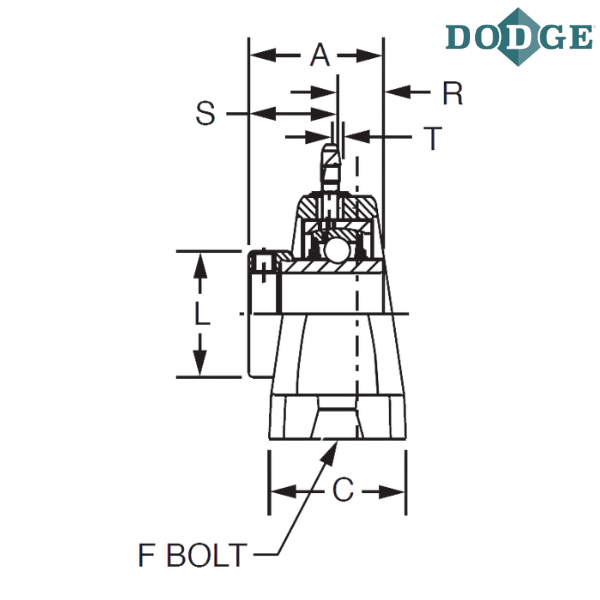

Length Through Bore (A) inch - 2.25

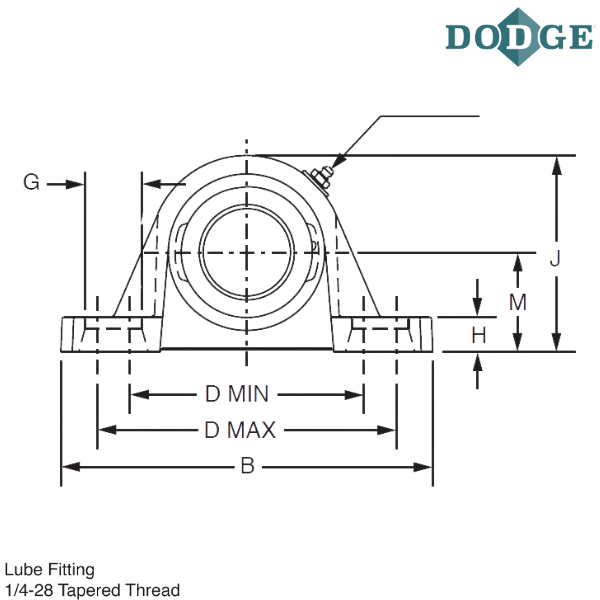

Overall Length (B) inch - 8.88
Width (C) inch - 2.3
Bolt to Bolt Minimum Distance (D min) inch - 6.38
Bolt to Bolt Maximum Distance (D max) inch - 7.44
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.21
H (inch) - 0.88
Overall Height (J) inch - 4.96
L (inch) - 2.75
M (inch) - 2.5
R (inch) - 0.75
S (inch) - 1.5
Total Expansion (T) inch - 0.22

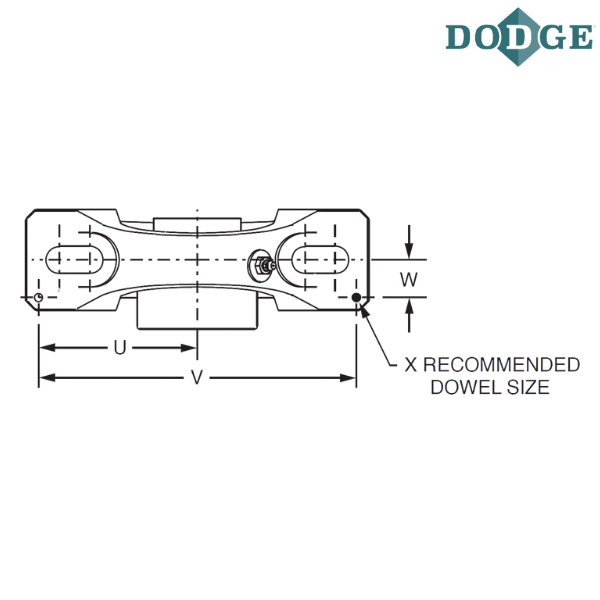

U (inch) - 3.94
V (inch) - 7.88
W (inch) - 0.81
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
H - High backing height
E - Expansion

** Images are for representation purposes only
