DODGE - P2B-SXRH-102-E

Brand - DODGE
Item Number - DODGE - P2B-SXRH-102-E
Category - Eccentric Collar Ball Bearings (SXRH-E Expansion and SXR Non-Expansion Normal Duty Pillow Blocks)
Series - 206
Shaft Size (inch) - 1.125
Description - P2B-SXRH-102-E
Weight (lbs) - 5.3

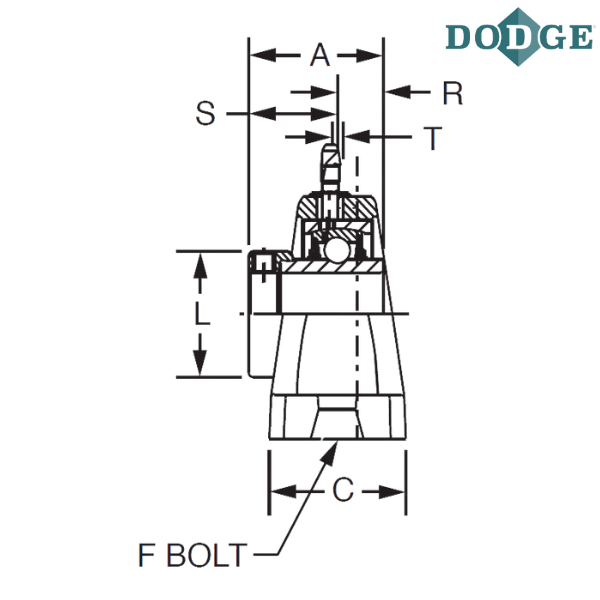

Length Through Bore (A) inch - 1.77

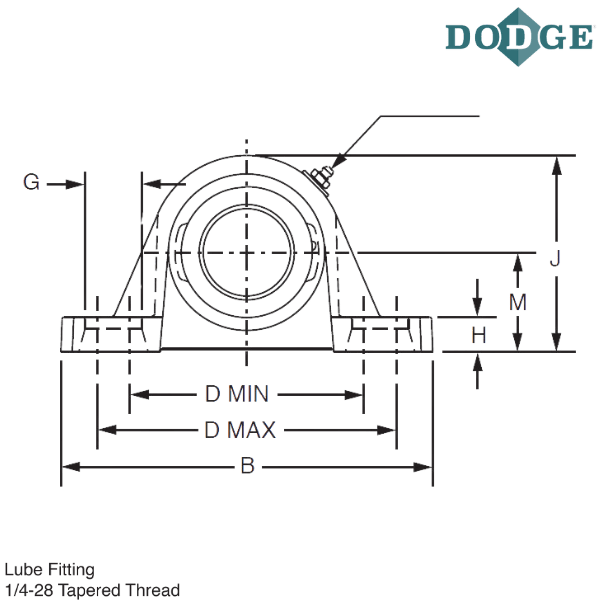

Overall Length (B) inch - 6.5
Width (C) inch - 1.75
Bolt to Bolt Minimum Distance (D min) inch - 4.68
Bolt to Bolt Maximum Distance (D max) inch - 5.44
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.94
H (inch) - 0.71
Overall Height (J) inch - 3.75
L (inch) - 1.75
M (inch) - 1.88
R (inch) - 0.58
S (inch) - 1.19
Total Expansion (T) inch - 0.16

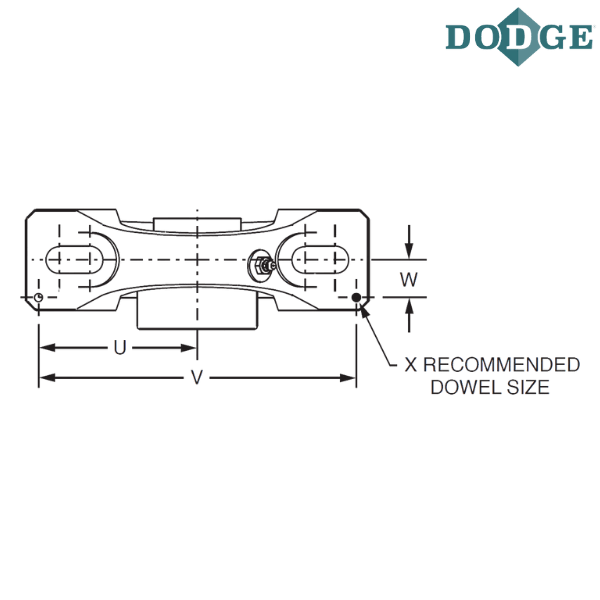

U (inch) - 2.91
V (inch) - 5.82
W (inch) - 0.56
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
H - High backing height
E - Expansion

** Images are for representation purposes only
