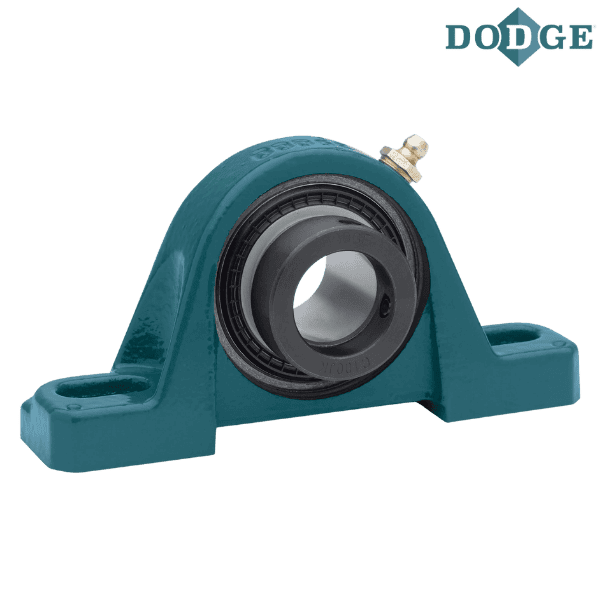

DODGE - P2B-SXRB-50M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - P2B-SXRB-50M
Category - Eccentric Collar Ball Bearings (SXRB Normal Duty Pillow Blocks)
Series - 210
Shaft Size (mm) - 50
Description - P2B-SXRB-50M
Description (With Flingers) - P2B-SXRB-50M-FF
Weight (kg) - 3.2

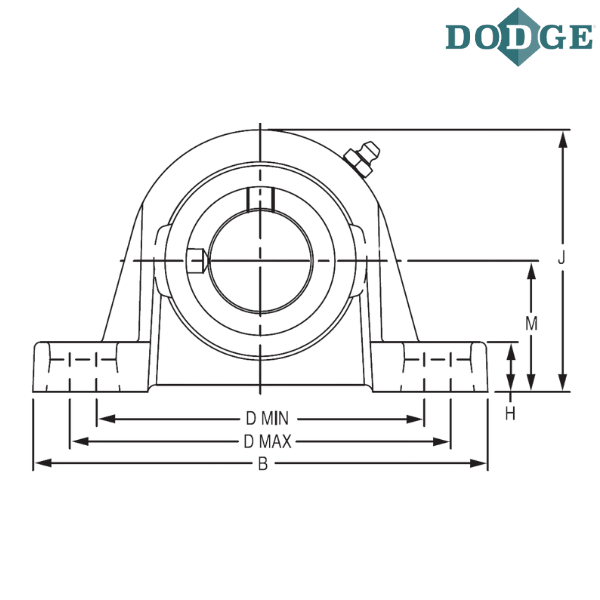

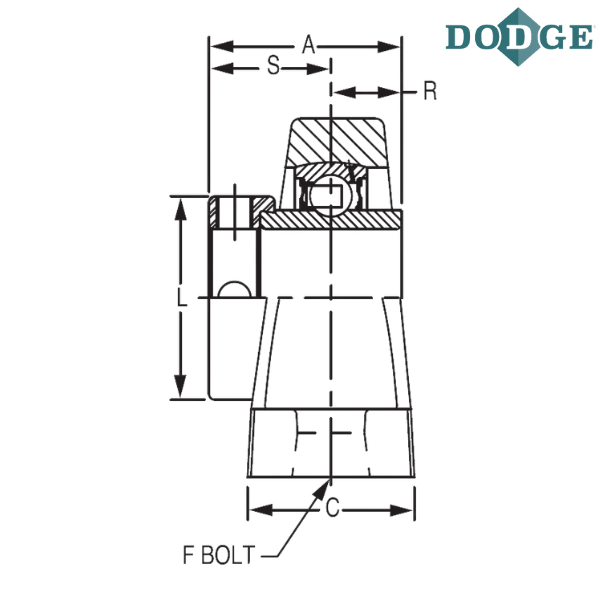

Length Through Bore (A) mm - 57.2
Overall Length (B) mm - 206.2
Width (C) mm - 57.2
Bolt to Bolt Minimum Distance (D min) mm - 152.4
Bolt to Bolt Maximum Distance (D max) mm - 169.7
F-Bolt Diameter - M16
G (mm) - 25.9
H (mm) - 17.3
Overall Height (J) mm - 113.5
L (mm) - 69.9
M (mm) - 55.6
R (mm) - 19.1
S (mm) - 38.1

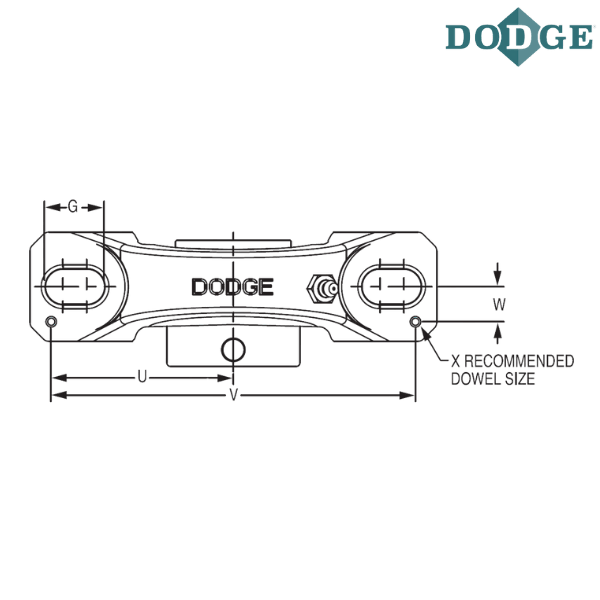

U (mm) - 93.7
V (mm) - 187.5
W (mm) - 20.6
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
B - Low backing height pillow block
M - Metric

** Images are for representation purposes only
