Description
Brand - DODGE
Item Number - DODGE - P2B-SXRB-30M
Category - Eccentric Collar Ball Bearings (SXRB Normal Duty Pillow Blocks)
Series - 206
Shaft Size (mm) - 30
Description - P2B-SXRB-30M
Description (With Flingers) - P2B-SXRB-30M-FF
Weight (kg) - 1.1

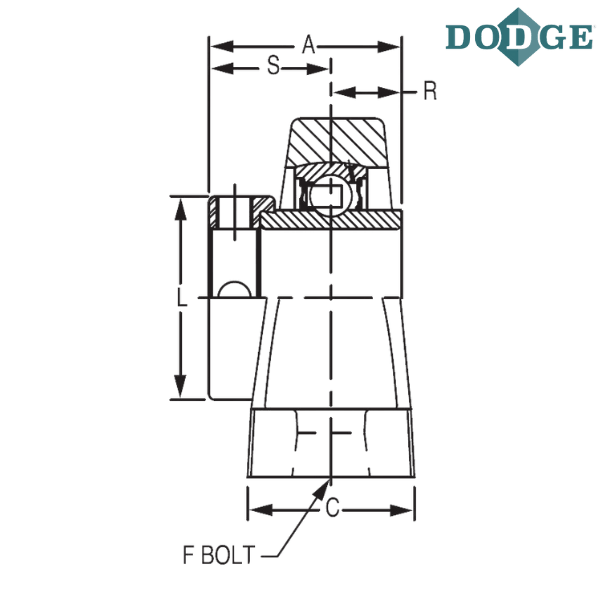

Length Through Bore (A) mm - 45

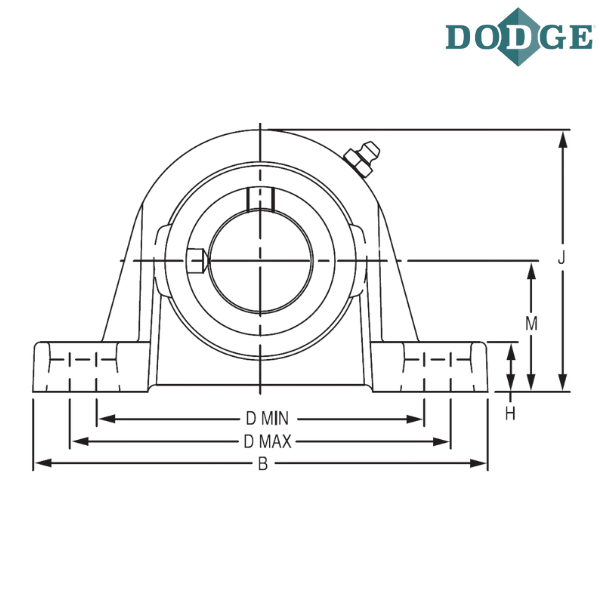

Overall Length (B) mm - 158.8
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) mm - 108
Bolt to Bolt Maximum Distance (D max) mm - 127
F-Bolt Diameter - M12
G (mm) - 23.9
H (mm) - 15.8
Overall Height (J) mm - 81
L (mm) - 44.5
M (mm) - 39.6
R (mm) - 14.7
S (mm) - 30.2

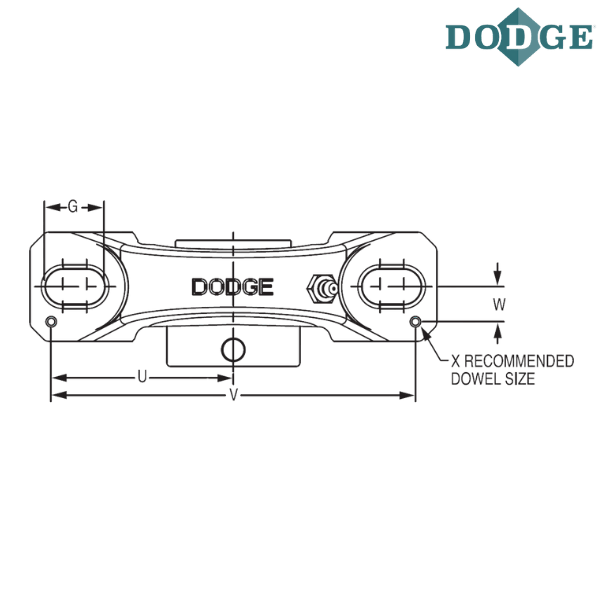

U (mm) - 73.2
V (mm) - 146.3
W (mm) - 14.2
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2 bolt base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
B - Low backing height pillow block
M - Metric

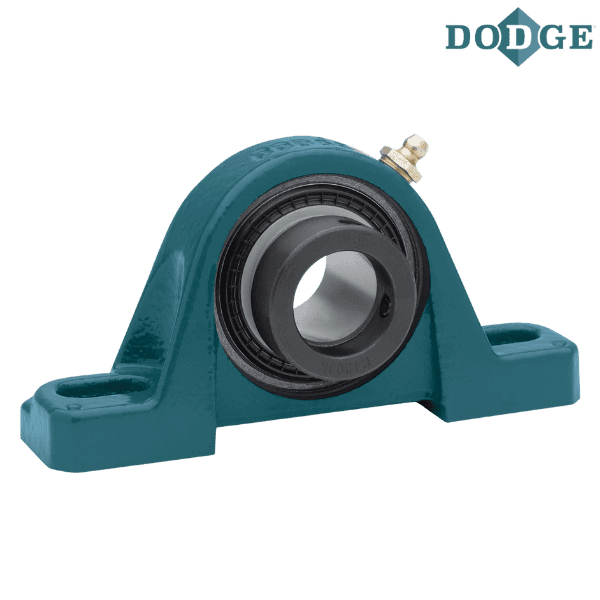

** Images are for representation purposes only
