Description
Brand - DODGE
Item Number - DODGE - P2B-SLX-25M
Category - Eccentric Collar Ball Bearings (SLX Light Duty Pillow Blocks)
Series - 205
Shaft Size (mm) - 25
Description - P2B-SLX-25M
Weight (kg) - 0.34

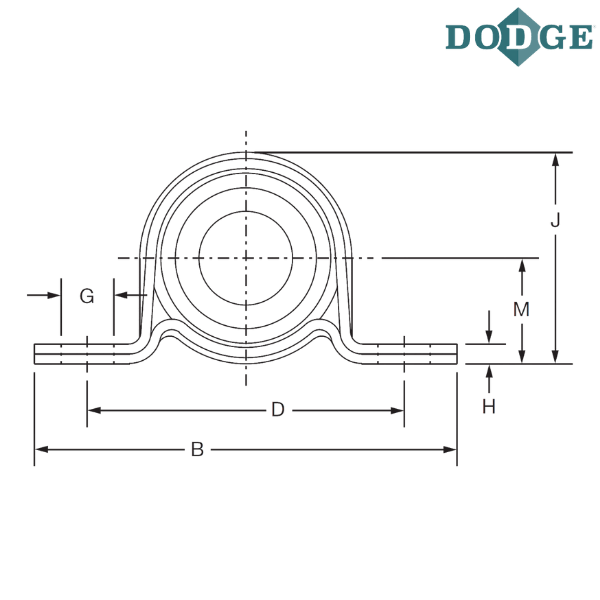

Length Through Bore (A) mm - 31
Overall Length (B) mm - 114.3
Width (C) mm - 28.7
Bolt Center to Center Length (D) mm - 85.9
F-Bolt Diameter - M10
G (mm) - 14.2
H (mm) - 5.3
Overall Height (J) mm - 56.4
L (mm) - 38.1
Base to Center Height (M) mm - 28.7
R (mm) - 7.6
S (mm) - 23.4
Housing Radial Load Rating (lbs) - 1779
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2 bolt base pillow block
SLX - Narrow inner ring, light duty, stamped steel housing, eccentric locking collar
M - Metric
** Images are for representation purposes only
