Description
Brand - DODGE
Item Number - DODGE - P2B-SLX-008
Category - Eccentric Collar Ball Bearings (SLX Light Duty Pillow Blocks)
Series - 203
Shaft Size (inch) - 0.5
Description - P2B-SLX-008
Weight (lbs) - 0.52

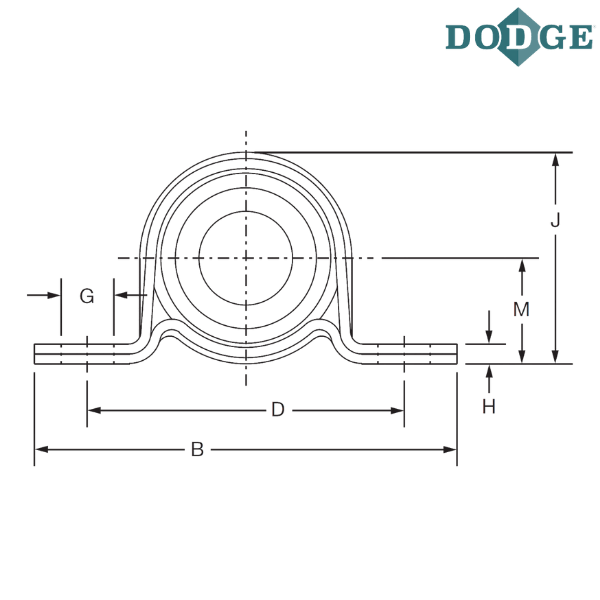

Length Through Bore (A) inch - 1.13
Overall Length (B) inch - 3.63
Width (C) inch - 1
Bolt Center to Center Length (D) inch - 2.69
F-Bolt Diameter (inch) - 0.25
G (inch) - 0.5
H (inch) - 0.13
Overall Height (J) inch - 1.75
L (inch) - 1.13
Base to Center Height (M) inch - 0.88
R (inch) - 0.26
S (inch) - 0.87
Housing Radial Load Rating (lbs) - 250
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2 bolt base pillow block
SLX - Narrow inner ring, light duty, stamped steel housing, eccentric locking collar
** Images are for representation purposes only
