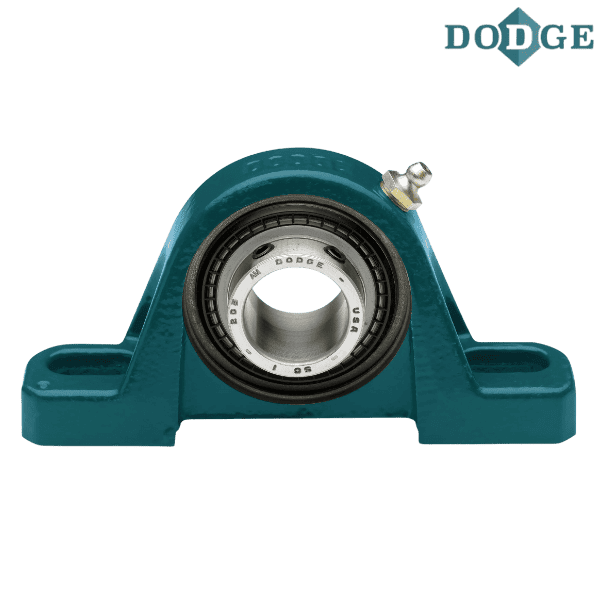

DODGE - P2B-SCMAH-208


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - P2B-SCMAH-208
Category - Setscrew Ball Bearings (SCAH and SCUAH Air Handling Normal Duty Pillow Blocks)
Series - 214
Shaft Size (inch) - 2.5
Description - P2B-SCMAH-208
Weight (lbs) - 15.5

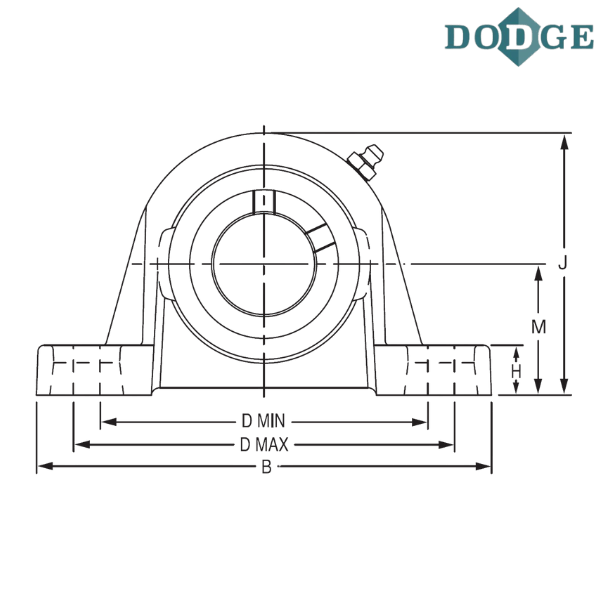

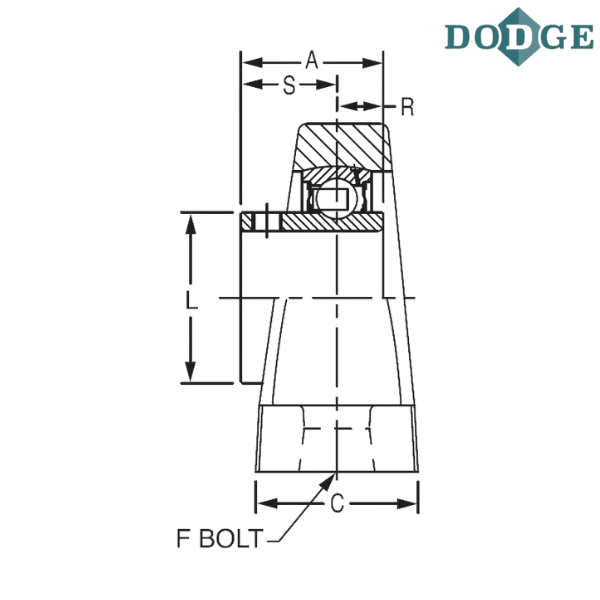

Length Through Bore (A) inch - 2.54
Overall Length (B) inch - 10.75
Width (C) inch - 2.69
Bolt to Bolt Minimum Distance (D min) inch - 7.5
Bolt to Bolt Maximum Distance (D max) inch - 8.5
F-Bolt Diameter (inch) - 0.75

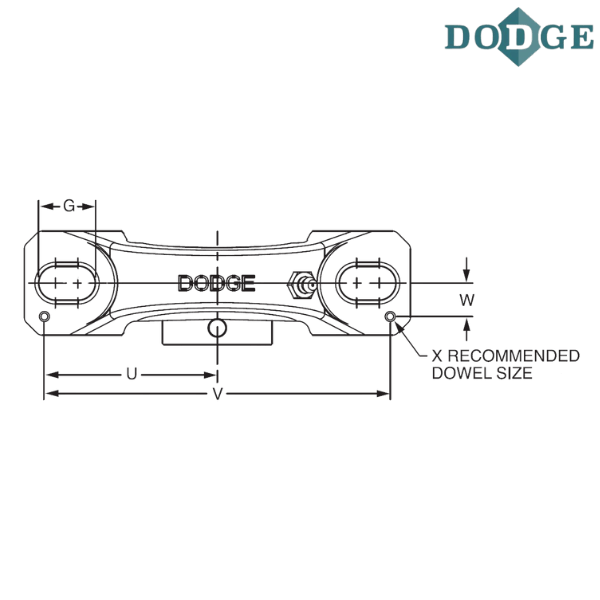

G (inch) - 1.32
H (inch) - 0.94
Overall Height (J) inch - 6.09
L (inch) - 3.31
Base to Center Height (M) inch - 3
R (inch) - 1.06
S (inch) - 1.48
U (inch) - 4.88
V (inch) - 9.76
W (inch) - 0.94
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
AH - Air handling

** Images are for representation purposes only
