Description
Brand - DODGE
Item Number - DODGE - P2B-SCM-75M-HT
Category - High Temperature Setscrew Ball Bearing (Pillow Blocks)
Series - 216
Description - P2B-SCM-75M-HT
Shaft Size (mm) - 75
Weight (kg) - 9

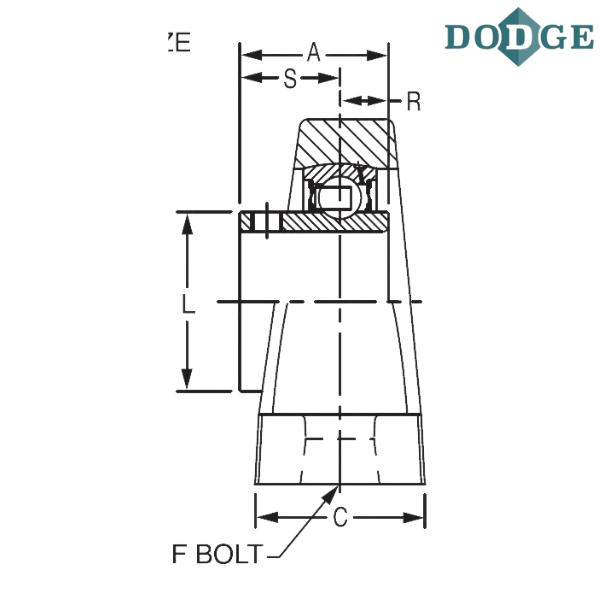

Length Through Bore (A) mm - 60.5

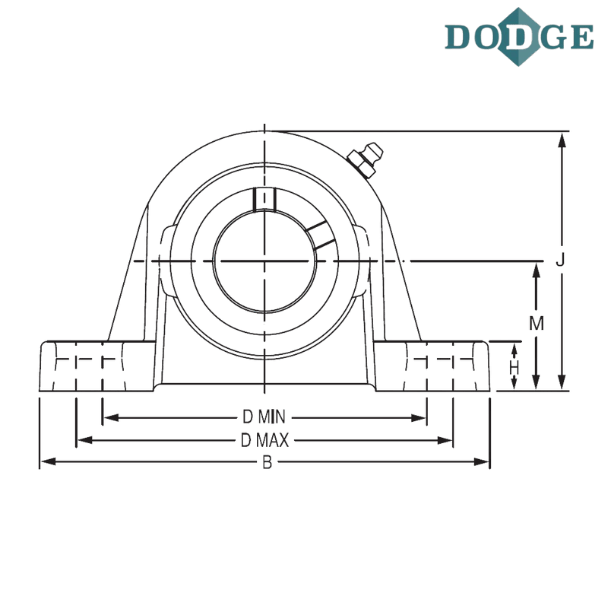

Overall Length (B) mm - 298.5
Width (C) mm - 76.2
Bolt to Bolt Minimum Distance (D min) mm - 215.9
Bolt to Bolt Maximum Distance (D max) mm - 241.3
F-Bolt Diameter - M22
G (mm) - 36.6
H (mm) - 31.8
Overall Height (J) mm - 177
L (mm) - 97.3
Base to Center Height (M) mm - 88.9
R (mm) - 22.4

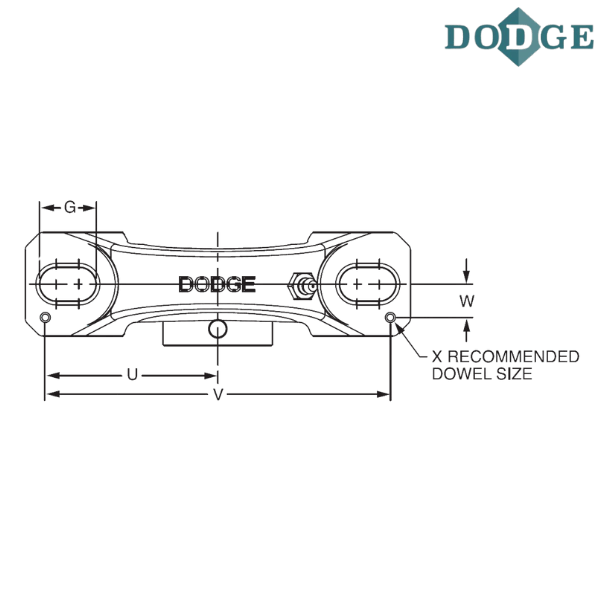

S (mm) - 38.1
U (mm) - 139.7
V (mm) - 279.4
W (mm) - 27.7
X (mm) - 3
Notes :
P2B - 2-bolt base pillow block
SCM - Wide inner ring, medium duty, 65° setscrew locking
M - Metric
HT - High Temperature
Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flage Bearing
Housing Material - Stainless Steel and polymar Coatings conform to U.S.D.A. and F.D.A. requirement.

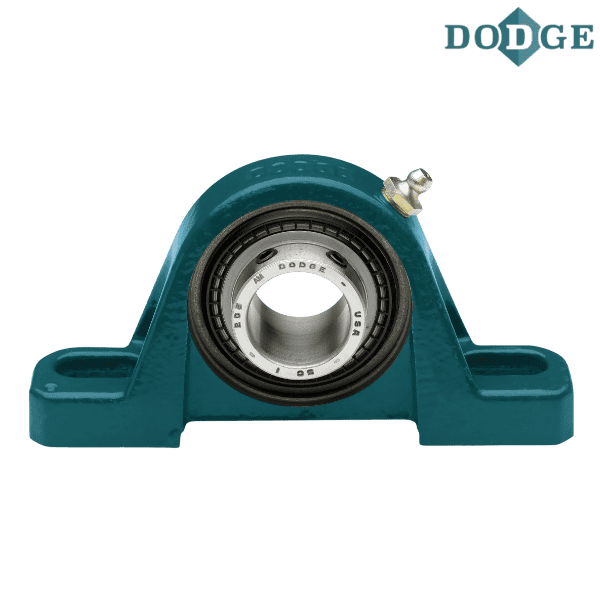

** Images are for representation purposes only
