DODGE - P2B-SCEZ-110-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - P2B-SCEZ-110-SHCR
Category - E-Z KLEEN Mounted Bearings With Corrosion Resistant Insert (SCEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 208
Shaft Size (inch) - 1.625
Description - P2B-SCEZ-110-SHCR
Part Number (Standard Insert with Flingers) - 062874
Description (Standard Insert with Flingers) - P2B-SCEZ-110-SH
Weight (lbs) - 4.39

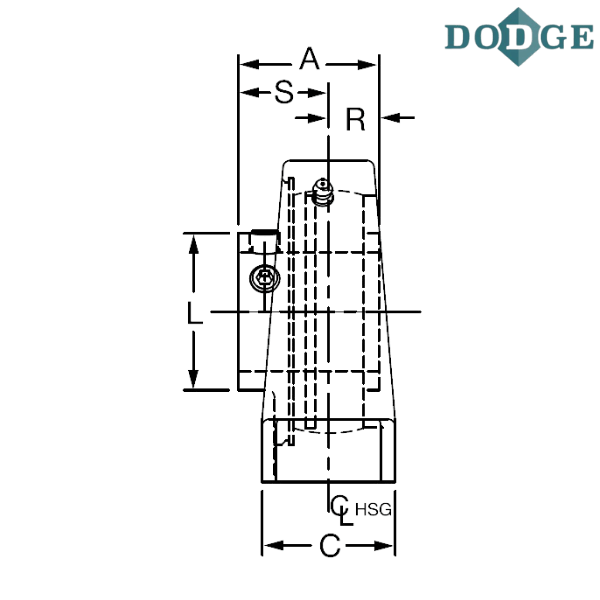

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 7
Width (C) inch - 1.5
Bolt to Bolt Minimum Distance (D min) inch - 5.18
Bolt to Bolt Maximum Distance (D max) inch - 6
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.97
H (inch) - 0.75
Overall Height (J) inch - 4
L (inch) - 2.05
Base to Center Height (M) inch - 2.13
R (inch) - 0.75
S (inch) - 1.19
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
