Description
Brand - DODGE
Item Number - DODGE - P2B-SCBAH-20M
Category - Setscrew Ball Bearings (SCBAH Air Handling Normal Duty Pillow Blocks)
Series - 204
Shaft Size (mm) - 20
Description - P2B-SCBAH-20M
Weight (kg) - 0.7

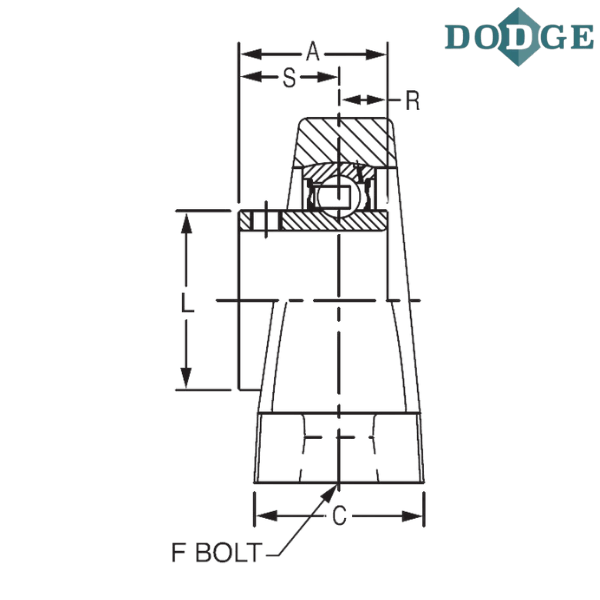

Length Through Bore (A) mm - 31.2

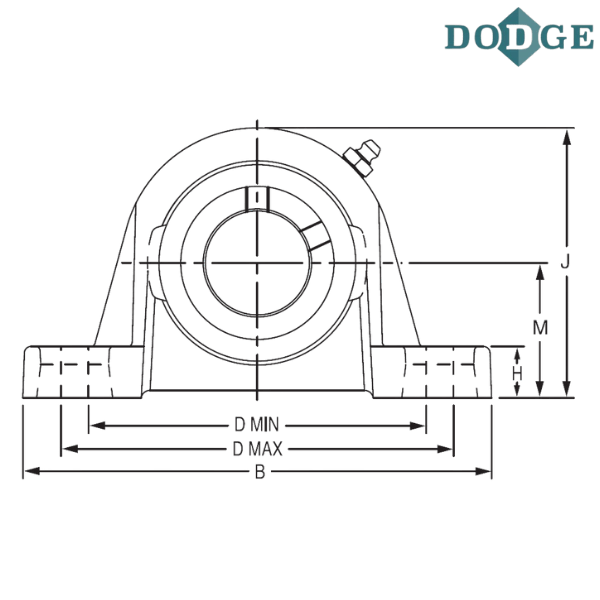

Overall Length (B) mm - 133.4
Width (C) mm - 34.04
Bolt to Bolt Minimum Distance (D min) mm - 85.9
Bolt to Bolt Maximum Distance (D max) mm - 106.4
F-Bolt Diameter - M10
G (mm) - 21.6
H (mm) - 11.9
Overall Height (J) mm - 63.3
L (mm) - 28.5
Base to Center Height (M) mm - 31.8
R (mm) - 12.7
S (mm) - 18.5

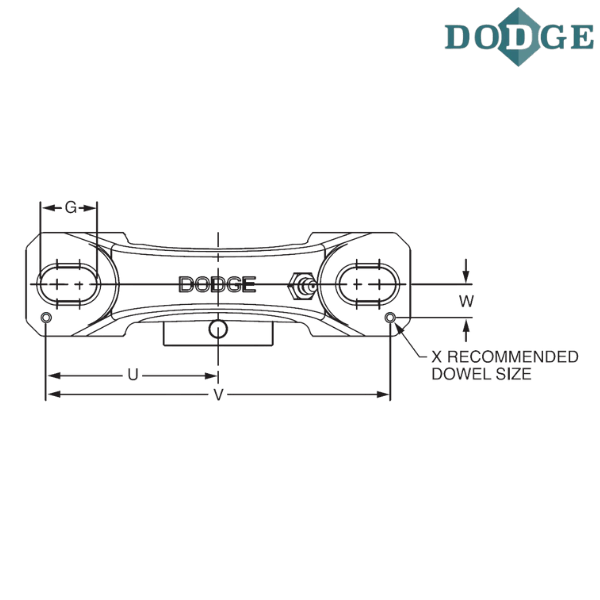

U (mm) - 57.2
V (mm) - 114.3
W (mm) - 12.7
X (mm) - 3.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
AH - Air handling
B - Low backing height pillow block
M - Metric

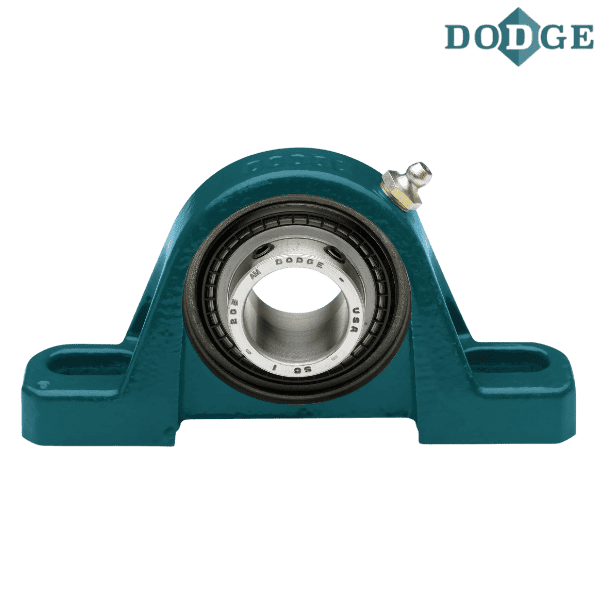

** Images are for representation purposes only
