Description
Brand - DODGE
Item Number - DODGE - P2B-SCAH-55M
Category - Setscrew Ball Bearings (SCAH and SCUAH Air Handling Normal Duty Pillow Blocks)
Series - 211
Shaft Size (mm) - 55
Description - P2B-SCAH-55M
Weight (kg) - 3.3

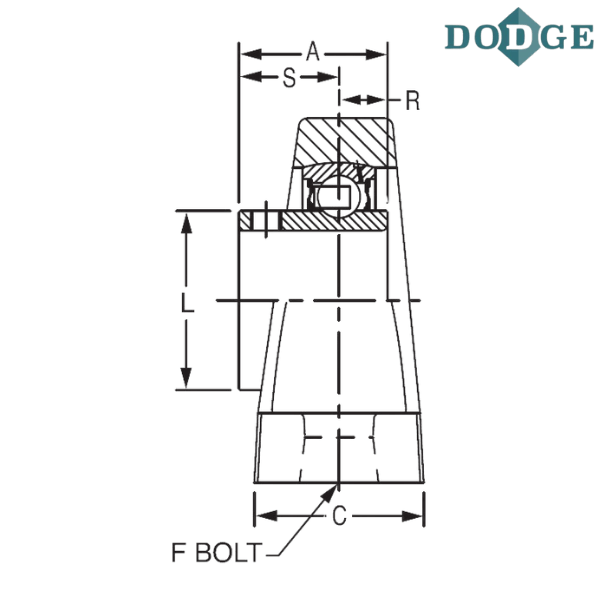

Length Through Bore (A) mm - 56.4

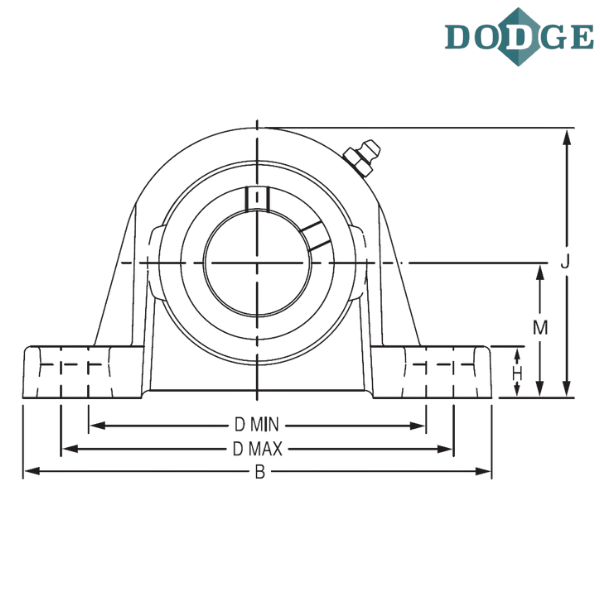

Overall Length (B) mm - 225.6
Width (C) mm - 58.4
Bolt to Bolt Minimum Distance (D min) mm - 162.1
Bolt to Bolt Maximum Distance (D max) mm - 189
F-Bolt Diameter - M16
G (mm) - 30.7
H (mm) - 22.4
Overall Height (J) mm - 126
L (mm) - 68.8
Base to Center Height (M) mm - 63.5
R (mm) - 22.1
S (mm) - 34.3

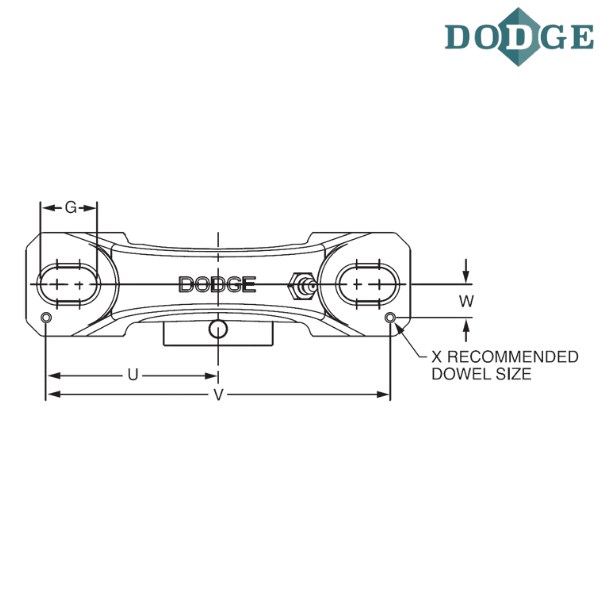

U (mm) - 100.1
V (mm) - 200.2
W (mm) - 20.6
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
AH - Air handling
M - Metric

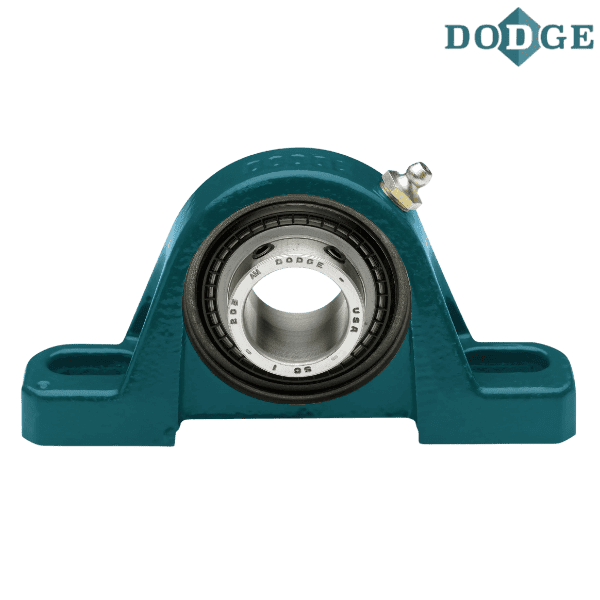

** Images are for representation purposes only
