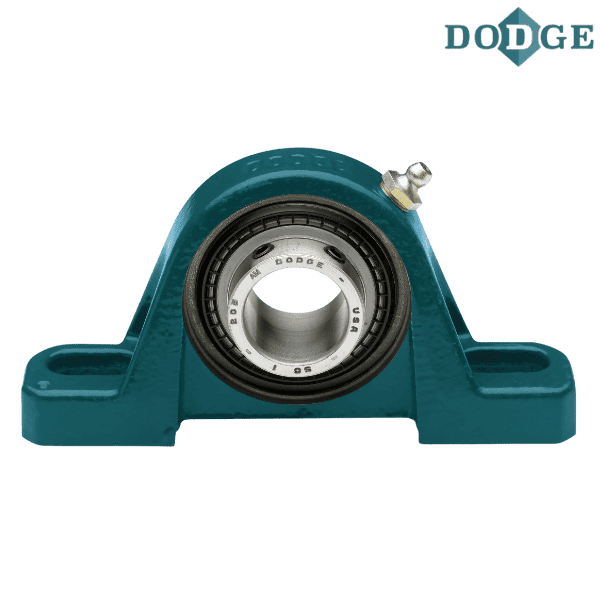

DODGE - P2B-SC-70M-HT


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - P2B-SC-70M-HT
Category - High Temperature Setscrew Ball Bearing (Pillow Blocks)
Series - 214
Description - P2B-SC-70M-HT
Shaft Size (mm) - 70
Weight (kg) - 6.9

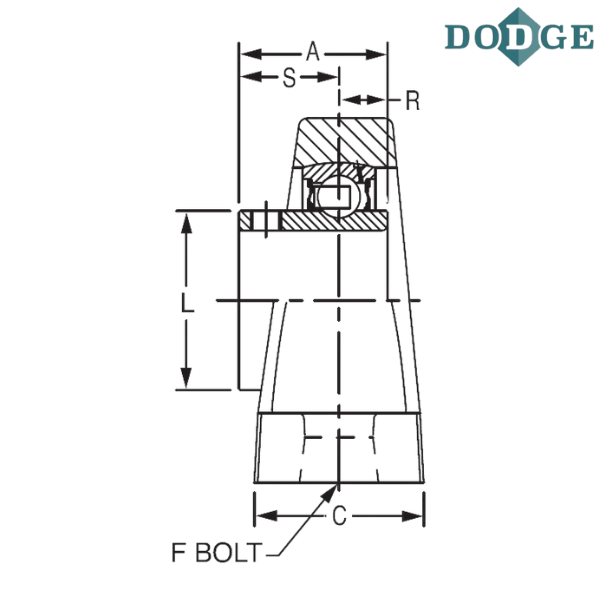

Length Through Bore (A) mm - 64.5

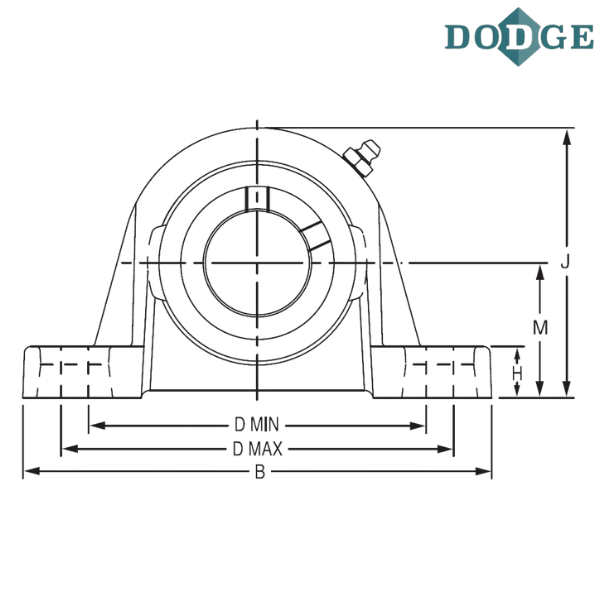

Overall Length (B) mm - 273.1
Width (C) mm - 68.3
Bolt to Bolt Minimum Distance (D min) mm - 190.5
Bolt to Bolt Maximum Distance (D max) mm - 215.9
F-Bolt Diameter - M18
G (mm) - 33.5
H (mm) - 23.9
Overall Height (J) mm - 154.7
L (mm) - 84.1
Base to Center Height (M) mm - 76.2
R (mm) - 26.9
S (mm) - 37.6

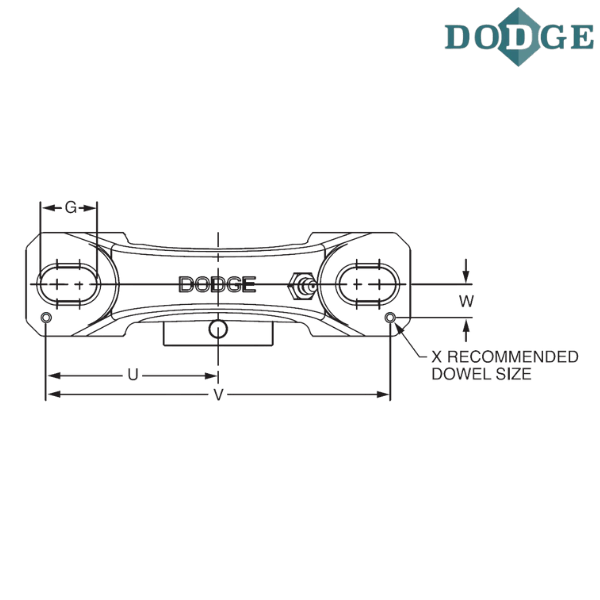

U (mm) - 124
V (mm) - 247.9
W (mm) - 23.9
X (mm) - 3

Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flage Bearing
Housing Material - Stainless Steel and polymar Coatings conform to U.S.D.A. and F.D.A. requirement.

** Images are for representation purposes only
