DODGE - P2B-GTH-60M-E

Brand - DODGE
Item Number - DODGE - P2B-GTH-60M-E
Category - GRIP TIGHT Adapter Ball Bearings (GTH-E Expansion Pillow Blocks)
Series - 212
Shaft Size (mm) - 60
Description - P2B-GTH-60M-E
Part Number (Unit without Adapter Sleeve and Lock Nut) - 130702
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTH-12-E
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136594
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-12-60M-D
Weight (kg) - 6.1

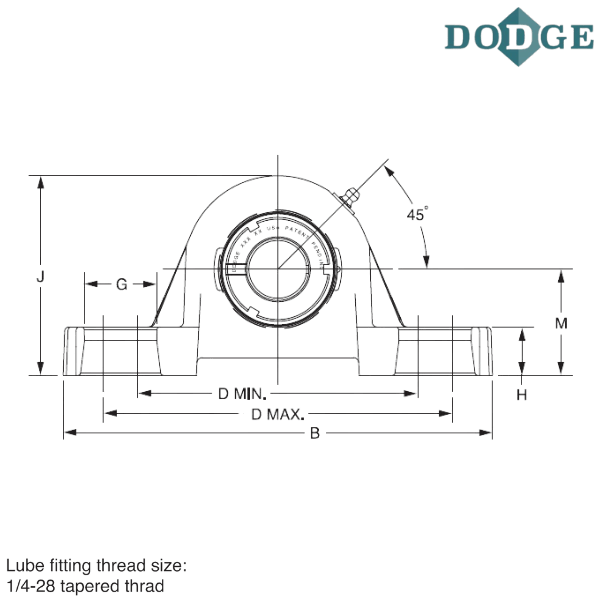

Length Through Bore (A) mm - 53.8
Overall Length (B) mm - 273.1
Width (C) mm - 68.3
Bolt to Bolt Minimum Distance (D min) mm - 190.5
Bolt to Bolt Maximum Distance (D max) mm - 215.9
F-Bolt Diameter - M18
G (mm) - 33.5
H (mm) - 23.8
Overall Height (J) mm - 154.7
L (mm) - 93.7
Base to Center Height (M) mm - 76.2
R (mm) - 18.5
S (mm) - 35.3
Total Expansion (T) mm - 5.6
U (mm) - 124
V (mm) - 247.9
W (mm) - 23.9
X (mm) - 3
Z (mm) - 37.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric
E - Expansion

** Images are for representation purposes only
