Description
Brand - DODGE
Item Number - DODGE - P2B-GTEZ-30M-SHCR
Category - E-Z Kleen Mounted Bearings (Complete Unit of GTEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 206
Description - P2B-GTEZ-30M-SHCR
Shaft Size (mm) - 30
Weight (kg) - 1.18

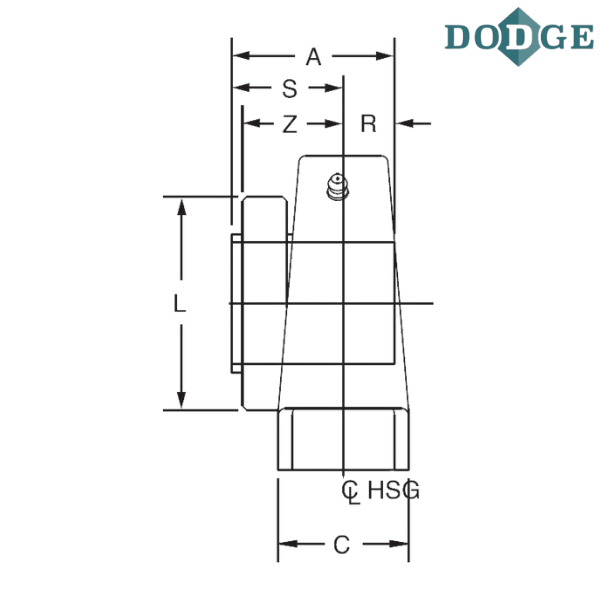

Length Through Bore (A) mm - 40.9
Overall Length (B) mm - 158.8
Width (C) mm - 31.8
Bolt to Bolt Minimum Distance (D min) mm - 108.2
Bolt to Bolt Maximum Distance (D max) mm - 127
F-Bolt Diameter - M12
G (mm) - 23.6
H (mm) - 13.5
Overall Height (J) mm - 79.5
L (mm) - 52.8
Base to Center Height (M) mm - 41.3
R* (mm) - 13.2
S* (mm) - 27.7
Z (mm) - 28.7
Part Number (Unit Without Adapter) - 129561
Description (Unit Without Adapter) - P2B-GTEZ-06-SHCR
Part Number (Adapter & Nut Assembly) - 129982
Description (Adapter & Nut Assembly) - AN-GT-06-30M-CR
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2 bolt base
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
* dimensions will vary slightly depending on true shaft diameter
** Images are for representation purposes only
