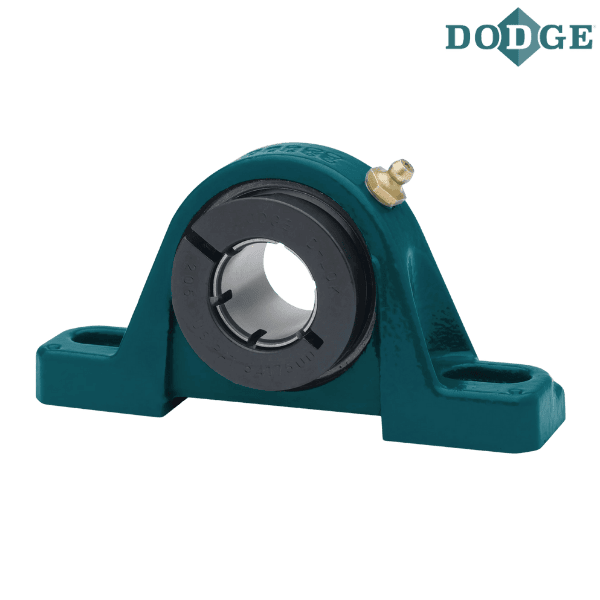

DODGE - P2B-DLBAH-40M

Brand - DODGE
Item Number - DODGE - P2B-DLBAH-40M
Category - D-LOK® Ball Bearings (DLAH Normal Duty Air Handling Pillow Blocks)
Series - 208 (DLB)
Shaft Size (mm) - 40
Description - P2B-DLBAH-40M
Weight (kg) - 2.7

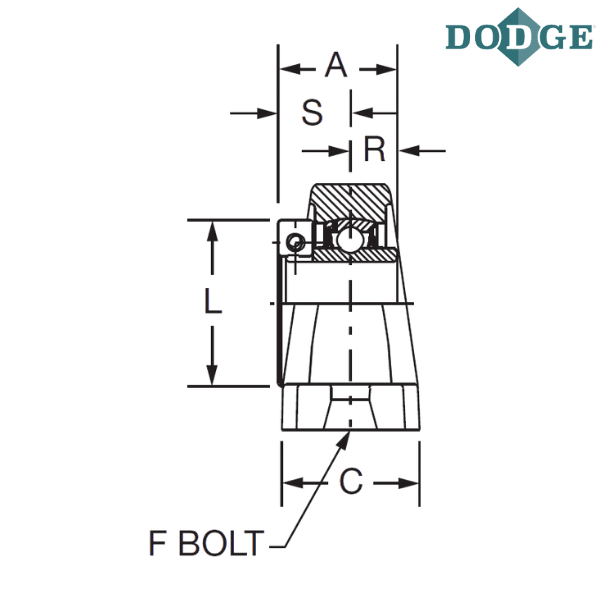

Length Through Bore (A) mm - 51.1

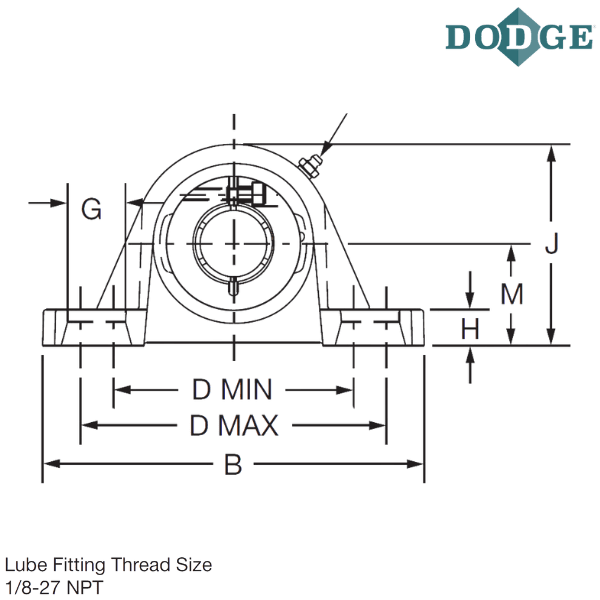

Overall Length (B) mm - 184.2
Width (C) mm - 49
Bolt to Bolt Minimum Distance (D min) mm - 131.6
Bolt to Bolt Maximum Distance (D max) mm - 149.4
F-Bolt Diameter - M12
G (mm) - 23.1
H (mm) - 19.1
Overall Height (J) mm - 101.6
L (mm) - 69.6
Base to Center Height (M) mm - 49.3
R (mm) - 19.1
S (mm) - 32

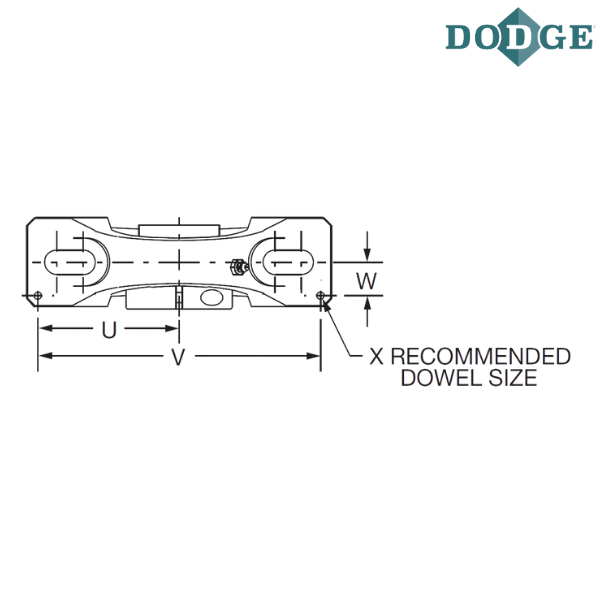

U (mm) - 82.8
V (mm) - 165.6
W (mm) - 17.5
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
B - Low backing height pillow block
AH - Air handling
M - Metric

** Images are for representation purposes only
