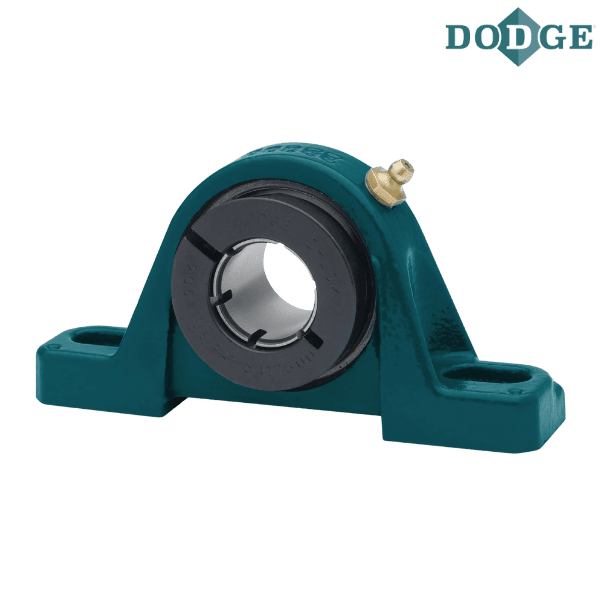

DODGE - P2B-DLB-50M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - P2B-DLB-50M
Category - D-LOK® Ball Bearings (DLB Normal Duty Pillow Blocks)
Series - 210
Shaft Size (mm) - 50mm
Description - P2B-DLB-50M
Weight (kg) - 3.9

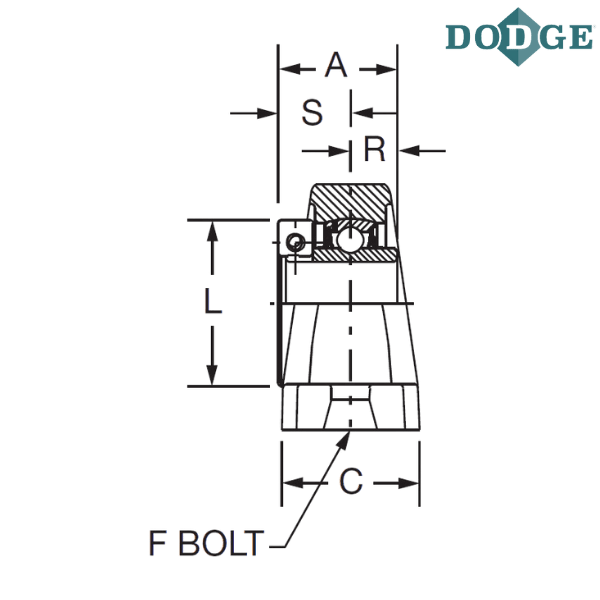

Length Through Bore (A) mm - 51.1

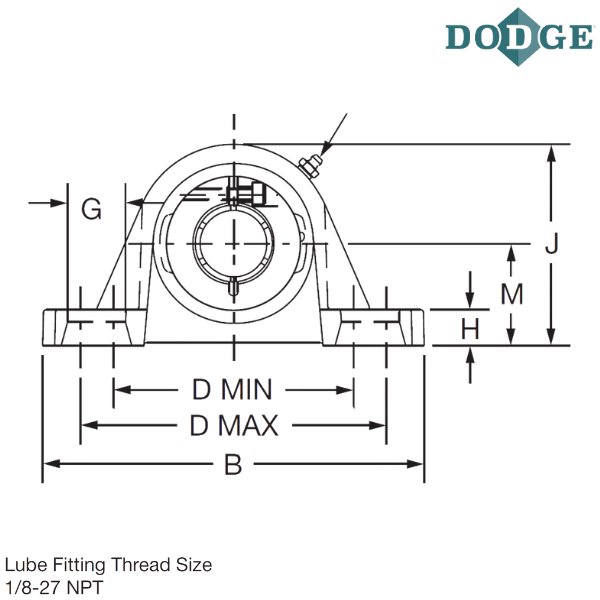

Overall Length (B) mm - 206.2
Width (C) mm - 57.2
Bolt to Bolt Minimum Distance (D min) mm - 152.4
Bolt to Bolt Maximum Distance (D max) mm - 169.7
F-Bolt Diameter - M16
G (mm) - 25.9
H (mm) - 17.3
Overall Height (J) mm - 113.5
L (mm) - 82.3
Base to Center Height (M) mm - 55.6
R (mm) - 19.1
S (mm) - 32

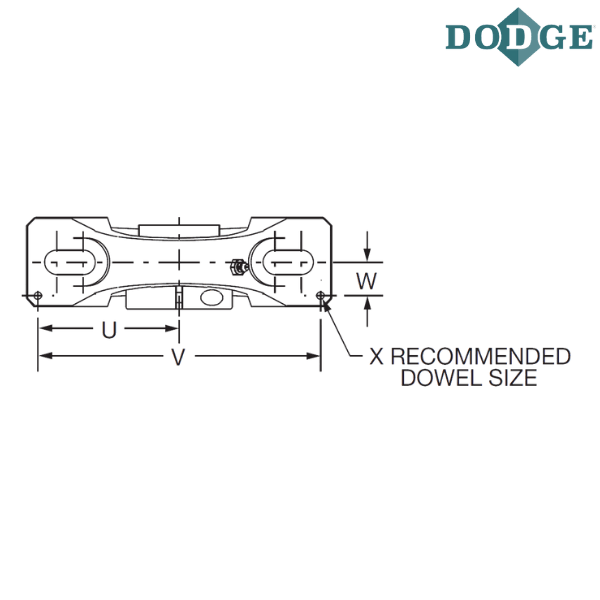

U (mm) - 93.7
V (mm) - 187.5
W (mm) - 20.6
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
B - Low backing height pillow block
M - Metric

** Images are for representation purposes only
