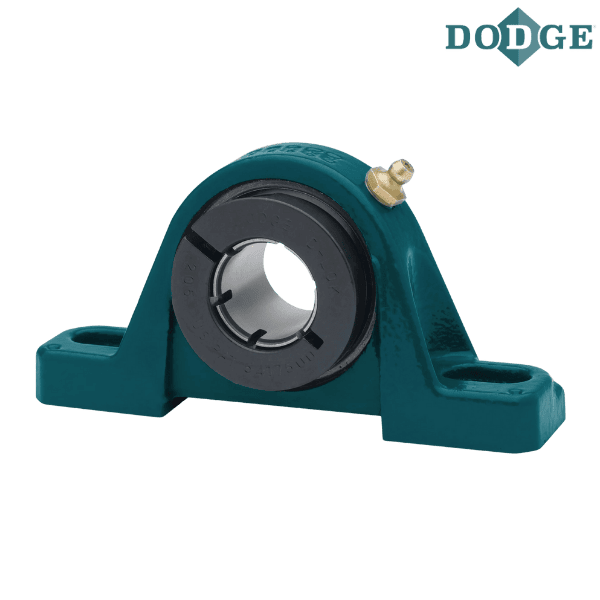

DODGE - P2B-DLAH-014

Brand - DODGE
Item Number - DODGE - P2B-DLAH-014
Category - D-LOK® Ball Bearings (DLAH Normal Duty Air Handling Pillow Blocks)
Series - 205
Shaft Size (inch) - 0.875
Description - P2B-DLAH-014
Weight (lbs) - 2.3

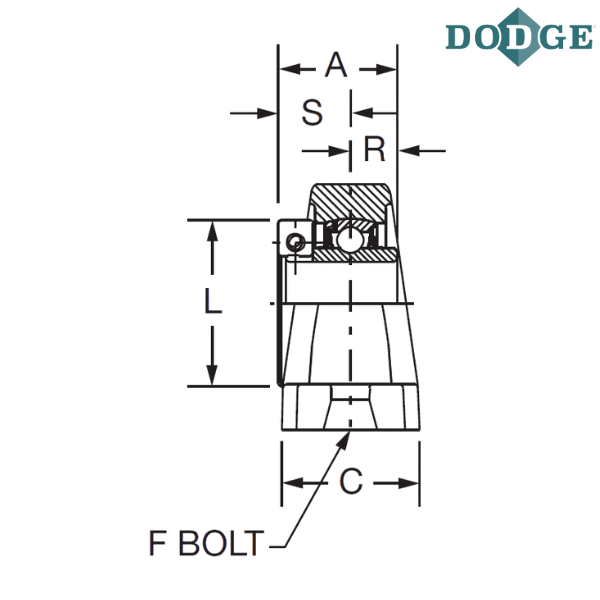

Length Through Bore (A) inch - 1.44

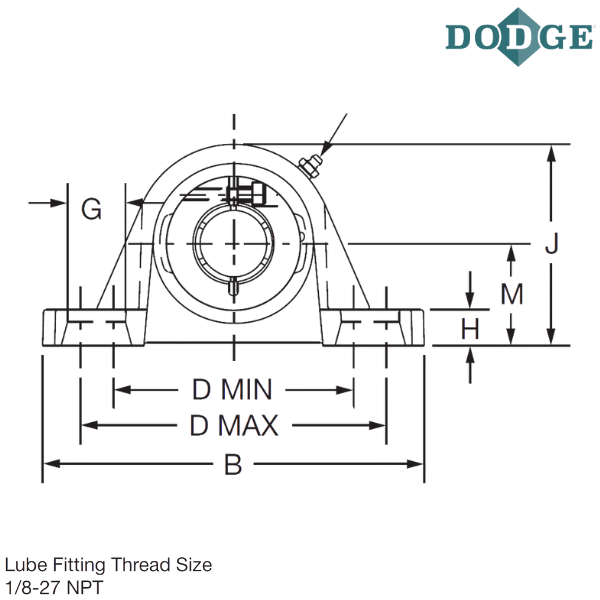

Overall Length (B) inch - 5.5
Width (C) inch - 1.4
Bolt to Bolt Minimum Distance (D min) inch - 3.69
Bolt to Bolt Maximum Distance (D max) inch - 4.5
F-Bolt Diameter (inch) - 45507
G (inch) - 0.85
H (inch) - 0.58
Overall Height (J) inch - 2.77
L (inch) - 1.99
Base to Center Height (M) inch - 1.44
R (inch) - 0.56
S (inch) - 0.88

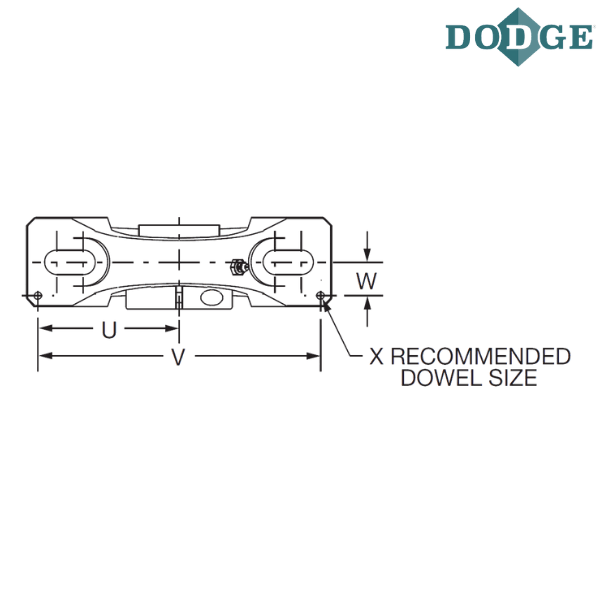

U (inch) - 2.5
V (inch) - 5
W (inch) - 0.5
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
AH - Air handling

** Images are for representation purposes only
