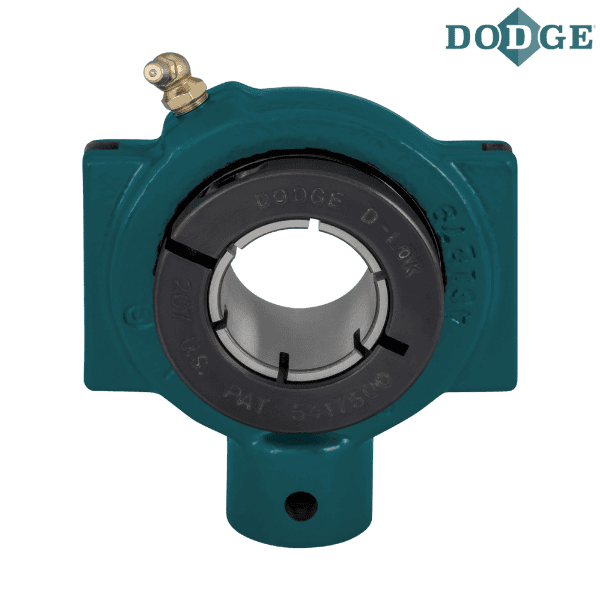

DODGE - NSTU-DL-110L


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - NSTU-DL-110L
Category - D-LOK® Ball Bearings (DLM Medium Duty Narrow Slot Take-Up Bearings)
Series - 209
Shaft Size (inch) - 1.625
Description - NSTU-DL-110L
Weight (lbs) - 4.8
Take-Up Frame Size - NS400

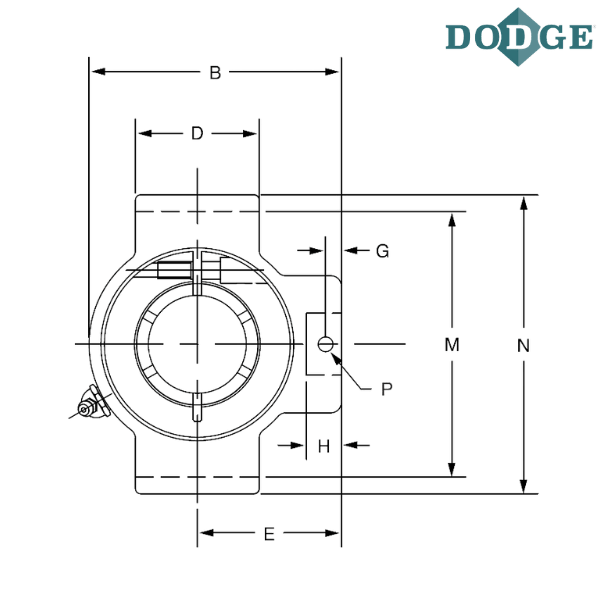

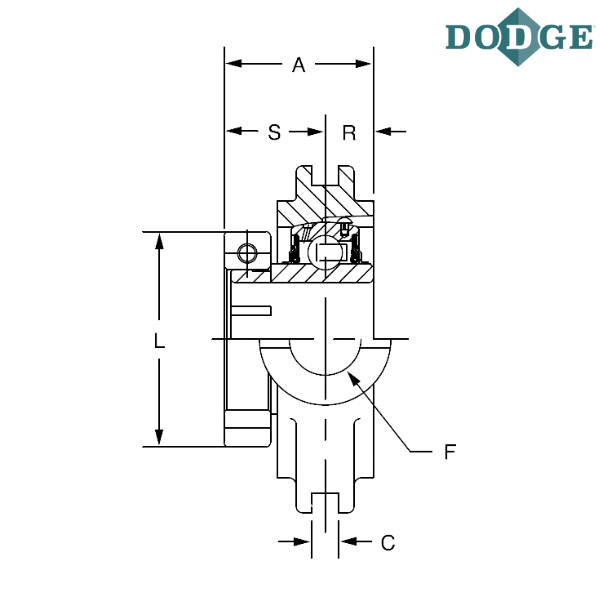

Length Through Bore (A) mm - 51.1
Overall Length (B) mm - 138.2
C (mm) - 7.95
D (mm) - 76.2
E (mm) - 82.6
F (Screw Diameter) mm - 22.2
G (mm) - 18.3
H (mm) - 31
J (mm) - 41.4
L (mm) - 75.9
M (mm) - 101.98/101.22
Overall Width (N) mm - 120.7
Pin Diameter (P) mm - 9.7
R (mm) - 19.1
S (mm) - 32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
DL - Wide inner ring, normal duty, concentric clamp collar
L - Next larger ring size

** Images are for representation purposes only
