DODGE - NSTU-DL-102


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - NSTU-DL-102
Category - D-LOK® Ball Bearings (DL Normal Duty Narrow Slot Take-Up Bearings)
Series - 206
Shaft Size (inch) - 1.125
Description - NSTU-DL-102
Weight (lbs) - 2.8
Take-Up Frame Size - NS308

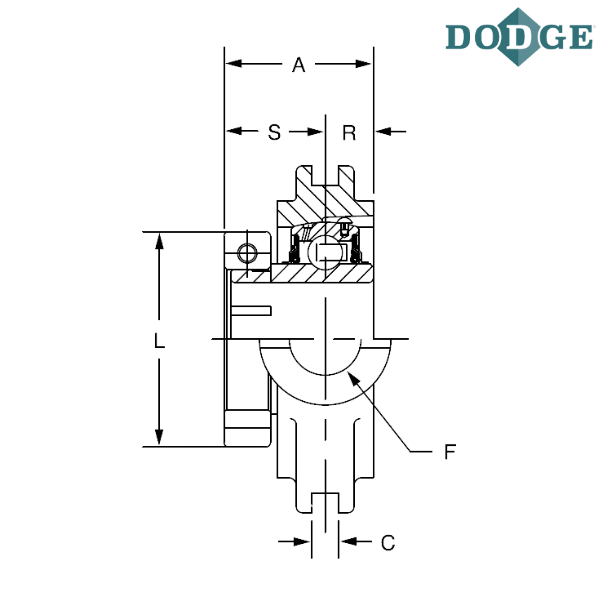

Length Through Bore (A) inch - 1.56

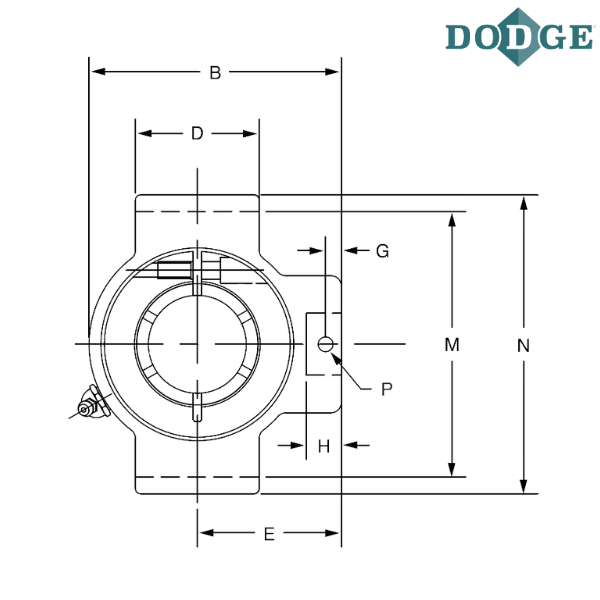

Overall Length (B) inch - 4.31
C (inch) - 0.25
D (inch) - 2.5
E (inch) - 2.69
F (Screw Diameter) inch - 0.75
G (inch) - 0.5
H (inch) - 0.94
J (inch) - 1.38
L (inch) - 2.22
M (inch) - 3.510/3.480
Overall Width (N) inch - 4.13
Pin Diameter (P) inch - 0.32
R (inch) - 0.58
S (inch) - 0.98
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
DL - Wide inner ring, normal duty, concentric clamp collar

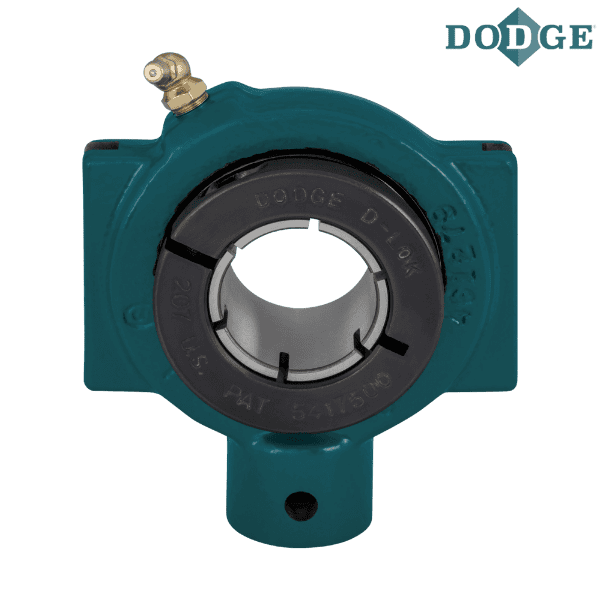

** Images are for representation purposes only
