Description
Brand - DODGE
Item Number - DODGE - NSTU-DL-015
Category - D-LOK® Ball Bearings (DL Normal Duty Narrow Slot Take-Up Bearings)
Series - 205
Shaft Size (inch) - 0.9375
Description - NSTU-DL-015
Weight (lbs) - 1.6
Take-Up Frame Size - NS210

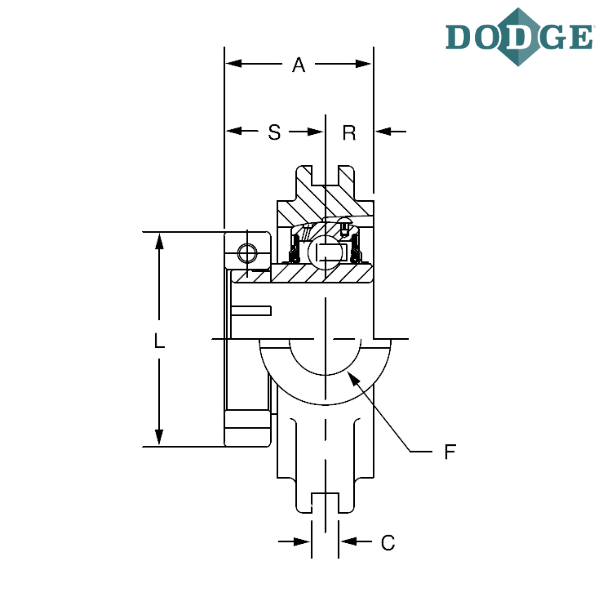

Length Through Bore (A) inch - 1.44

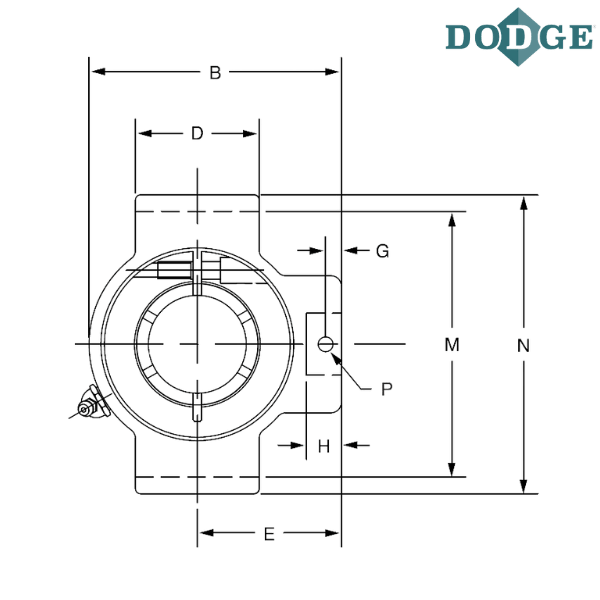

Overall Length (B) inch - 3.56
C (inch) - 0.25
D (inch) - 1.5
E (inch) - 2.19
F (Screw Diameter) inch - 0.75
G (inch) - 0.44
H (inch) - 0.88
J (inch) - 1.38
L (inch) - 1.99
M (inch) - 2.635/2.605
Overall Width (N) inch - 3.13
Pin Diameter (P) inch - 0.32
R (inch) - 0.56
S (inch) - 0.88
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
NSTU - Narrow slot take-up
DL - Wide inner ring, normal duty, concentric clamp collar

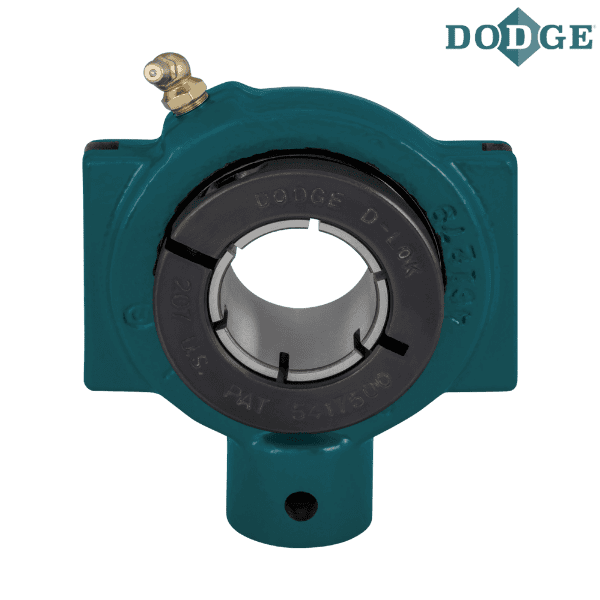

** Images are for representation purposes only
