Description
Brand - DODGE

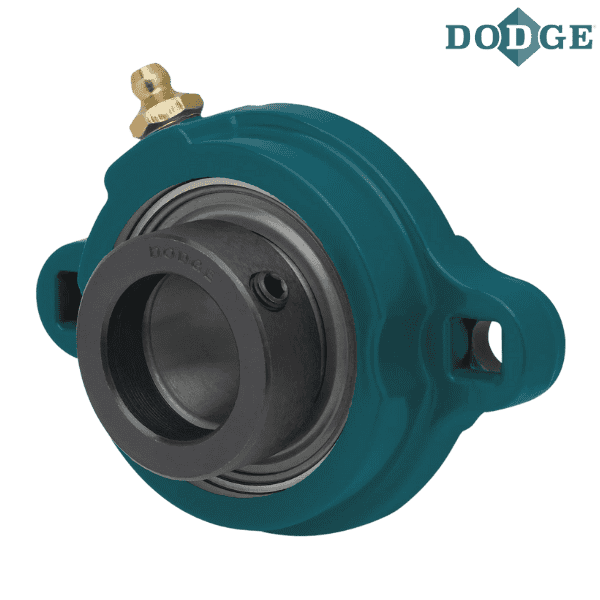

Item Number - DODGE - LFT-SXV-101
Category - Eccentric Collar Ball Bearings (SXV LFT Intermediate Duty 2-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.0625
Description - LFT-SXV-101
Description (No-Lube/Sealed for Life) - LFT-SXV-101-NL
Weight (lbs) - 1.53

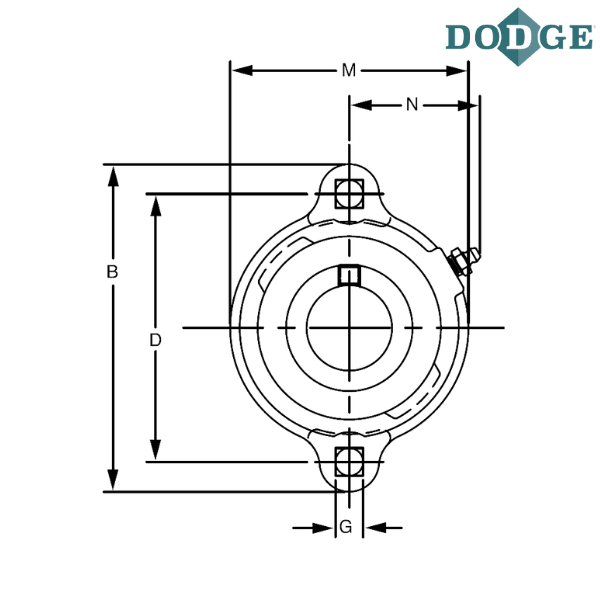

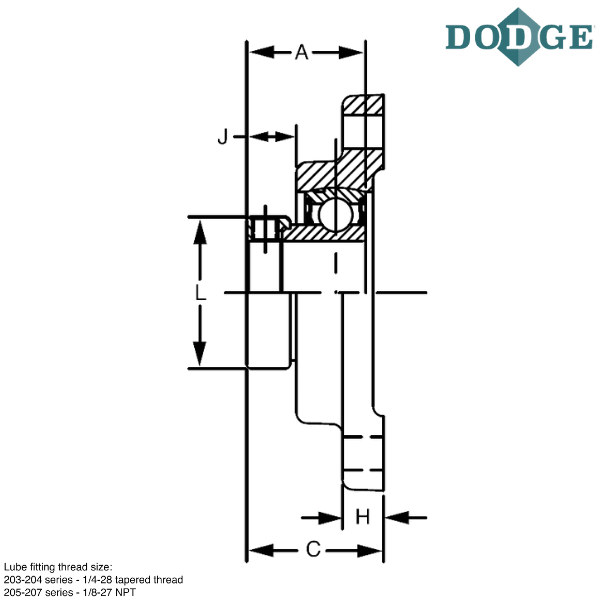

Length Through Bore (A) inch - 1.41
Overall Length (B) inch - 4.44
Thickness (C) inch - 1.6
Bolt Center to Center Length (D) inch - 3.56
G (inch) - 0.41
H (inch) - 0.47
J (inch) - 0.61
L (inch) - 1.75
M (inch) - 3.25
N (inch) - 1.72
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - 2 bolt light duty flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
** Images are for representation purposes only
