DODGE - LFT-SXV-008


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - LFT-SXV-008
Category - Eccentric Collar Ball Bearings (SXV LFT Intermediate Duty 2-Bolt Flange Bearings)
Series - 203
Shaft Size (inch) - 0.5
Description - LFT-SXV-008
Part Number (No-Lube/Sealed for Life) - 124748
Description (No-Lube/Sealed for Life) - LFT-SXV-008-NL
Weight (lbs) - 0.63

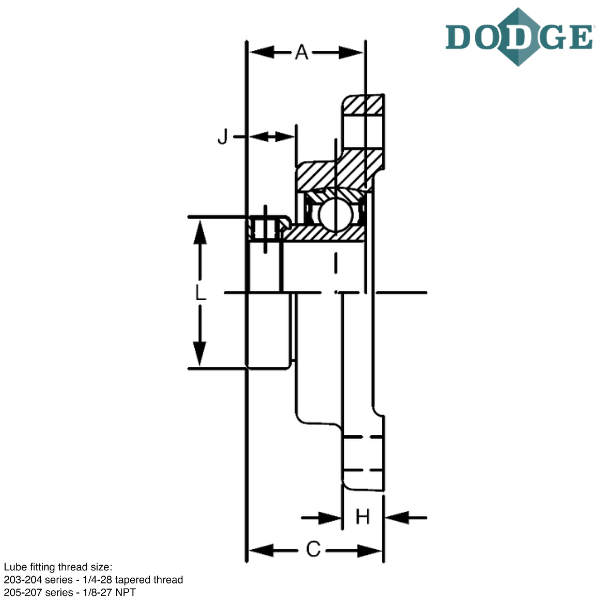

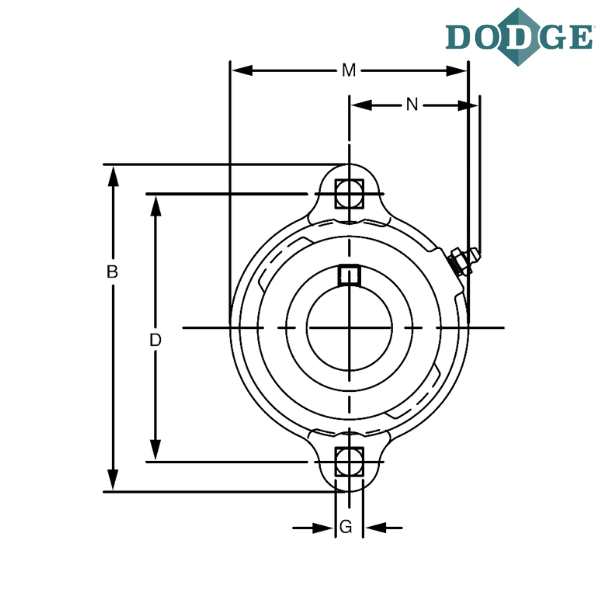

Length Through Bore (A) inch - 1.13
Overall Length (B) inch - 3.19
Thickness (C) inch - 1.28
Bolt Center to Center Length (D) inch - 2.5
G (inch) - 0.28
H (inch) - 0.38
J (inch) - 0.56
L (inch) - 1.13
M (inch) - 2.13
N (inch) - 1.23
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2 bolt light duty flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

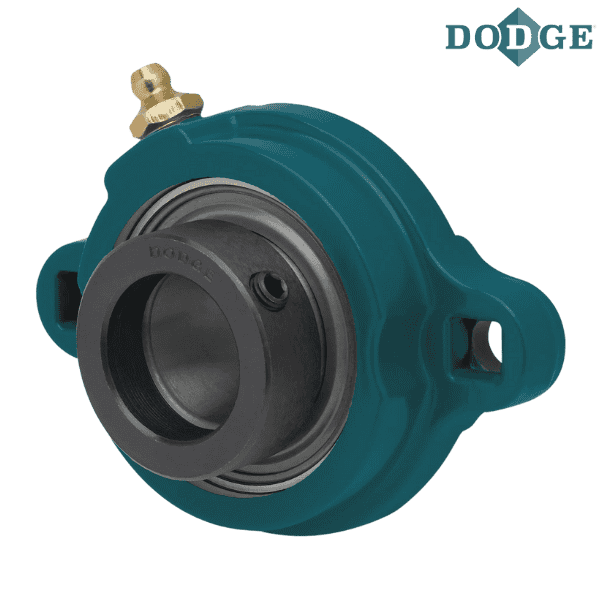

** Images are for representation purposes only
