DODGE - LFT-GT-35M

Brand - DODGE
Item Number - DODGE - LFT-GT-35M
Category - GRIP TIGHT Adapter Ball Bearings (GT LFT Normal Duty 2-Bolt Flange Bearings)
Series - 207
Shaft Size (mm) - 35
Description - LFT-GT-35M
Part Number (Unit without Adapter Sleeve and Nut) - 136359
Description (Unit without Adapter Sleeve and Nut) - LFT-GT-07
Part Number (Adapter and Nut Assembly) - 136556
Description (Adapter and Nut Assembly) - AN-GT-07-35M-D
Weight (kg) - 0.83

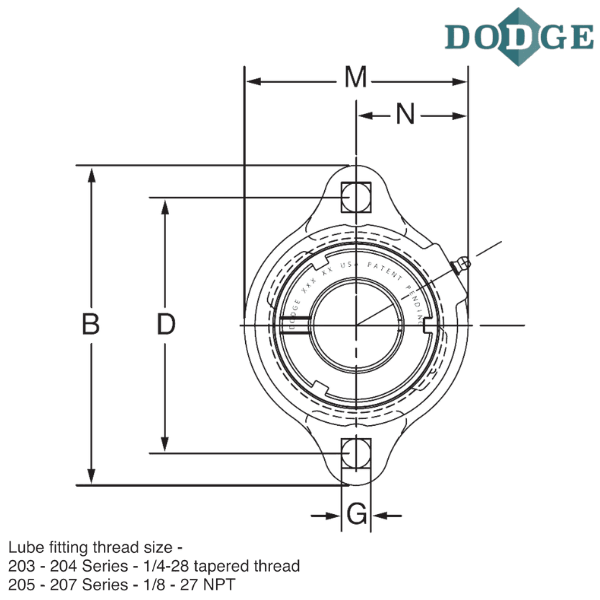

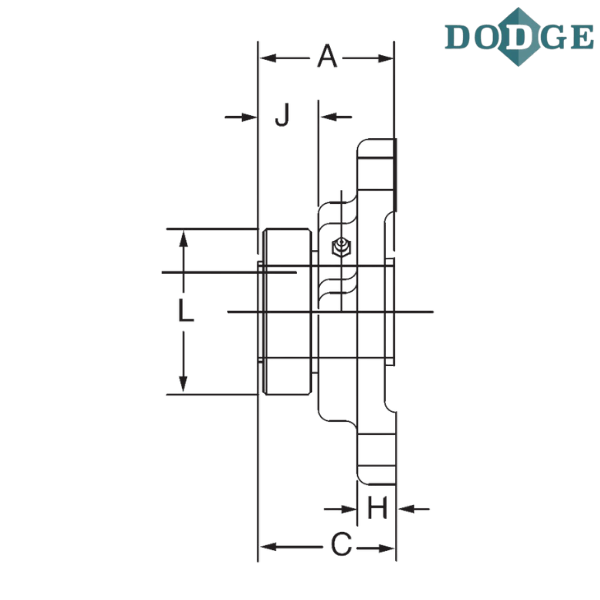

Length Through Bore (A) mm - 41.1
Overall Length (B) mm - 122.4
Thickness (C) mm - 41.4
Bolt Center to Center Length (D) mm - 100.1
G (mm) - 10.4
H (mm) - 12.7
J (mm) - 14.5
L (mm) - 60.5
Overall Width (M) mm - 88.9
N (mm) - 46.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2-bolt light duty flange
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
