Description
Brand - DODGE
Item Number - DODGE - LFT-DL-106
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 2-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.375
Description - LFT-DL-106
Weight (lbs) - 1.8

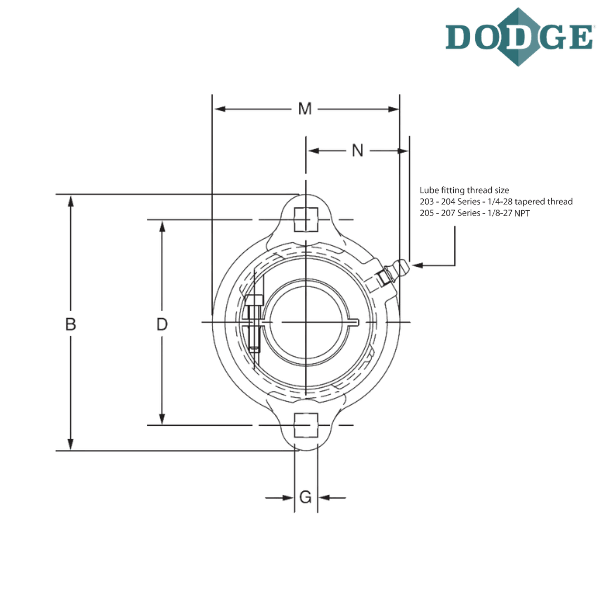

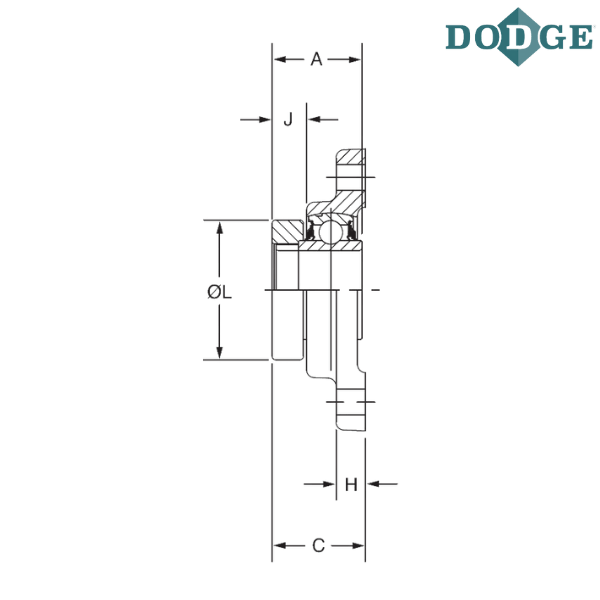

Length Through Bore (A) inch - 1.75
Overall Length (B) inch - 4.82
Thickness (C) inch - 1.64
Bolt Center to Center Length (D) inch - 3.94
G (inch) - 0.41
H (inch) - 0.5
J (inch) - 0.57
L (inch) - 2.69
Overall Width (M) inch - 3.5
N (inch) - 1.83
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - Light duty flange, 2-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar

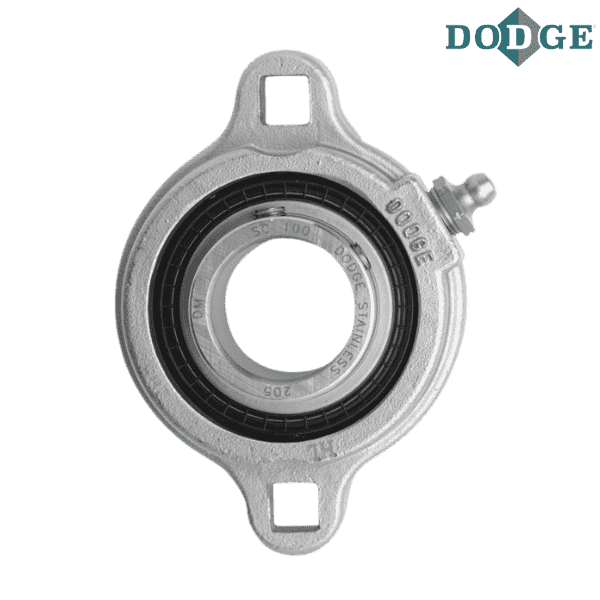

** Images are for representation purposes only
