DODGE - LF-SXV-101


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - LF-SXV-101

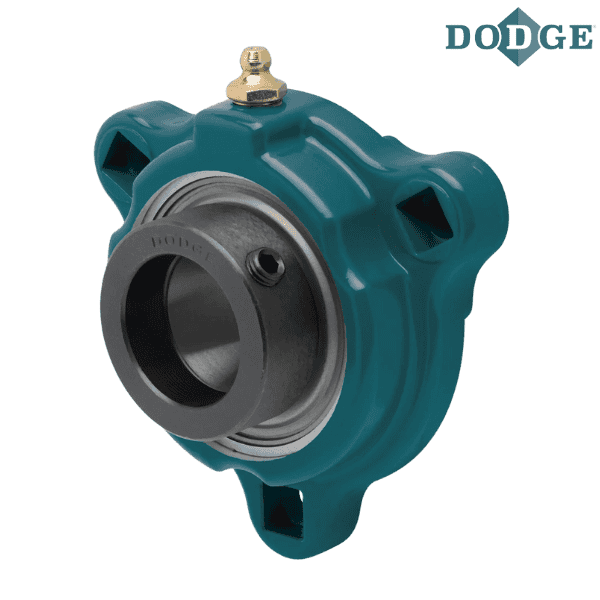

Category - Eccentric SXV Collar Ball Bearings (SXV LF Intermediate Duty 3-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.0625
Description - LF-SXV-101
Description (No-Lube/Sealed for Life) - LF-SXV-101-NL
Weight (lbs) - 1.53

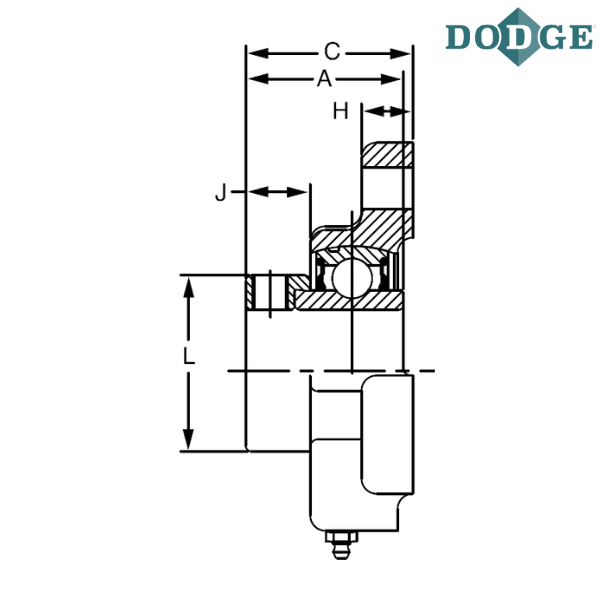

Length Through Bore (A) inch - 1.41
Overall Length (B) inch - 4.44
Thickness (C) inch - 1.6

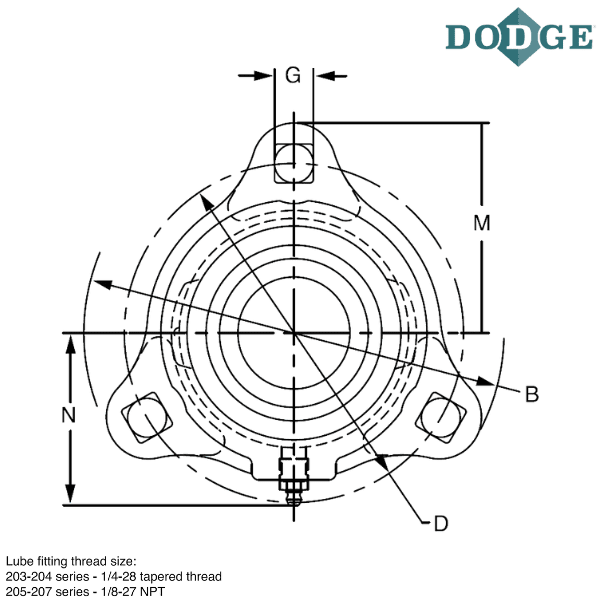

Bolt Circle (D) inch - 3.56
Bolt Diameter (G) inch - 0.41
H (inch) - 0.47
J (inch) - 0.61
L (inch) - 1.75
M (inch) - 2.22
N (inch) - 2.02
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LF - 3 bolt light duty flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

** Images are for representation purposes only
