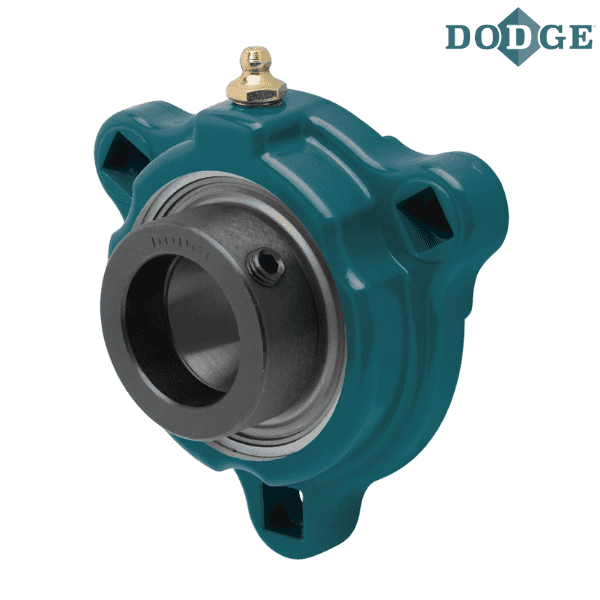

DODGE - LF-SXV-015


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - LF-SXV-015
Category - Eccentric SXV Collar Ball Bearings (SXV LF Intermediate Duty 3-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 0.9375
Description - LF-SXV-015
Description (No-Lube/Sealed for Life) - LF-SXV-015-NL
Weight (lbs) - 0.89

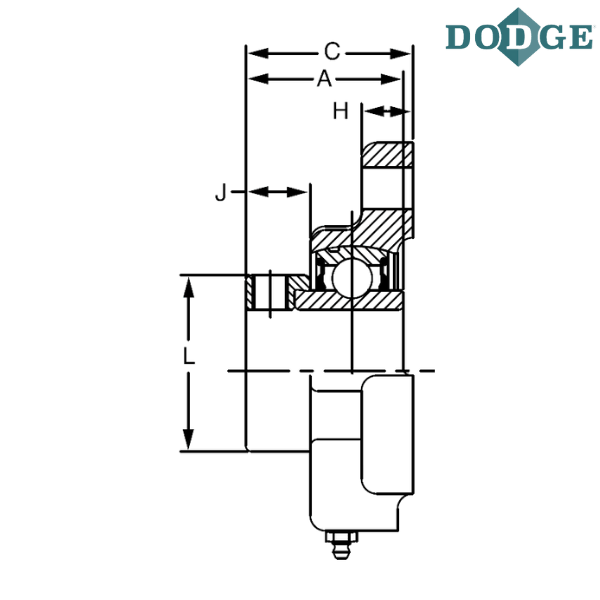

Length Through Bore (A) inch - 1.22
Overall Length (B) inch - 3.75
Thickness (C) inch - 1.4

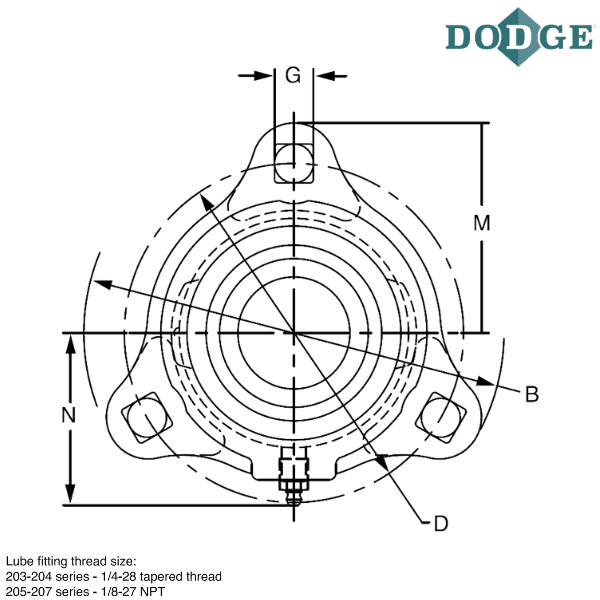

Bolt Circle (D) inch - 3
Bolt Diameter (G) inch - 0.34
H (inch) - 0.42
J (inch) - 0.53
L (inch) - 1.31
M (inch) - 1.88
N (inch) - 1.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LF - 3 bolt light duty flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

** Images are for representation purposes only
