DODGE - INS-SXRH-60M-E


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - INS-SXRH-60M-E
Category - Eccentric Collar Ball Bearings (SXRH-E Expansion and SXRH Non-Expansion Normal Duty Bearing Inserts)
Series - 212
Shaft Size (mm) - 60
Description - INS-SXRH-60M-E
Weight of Expansion Insert (kg) - 2.59

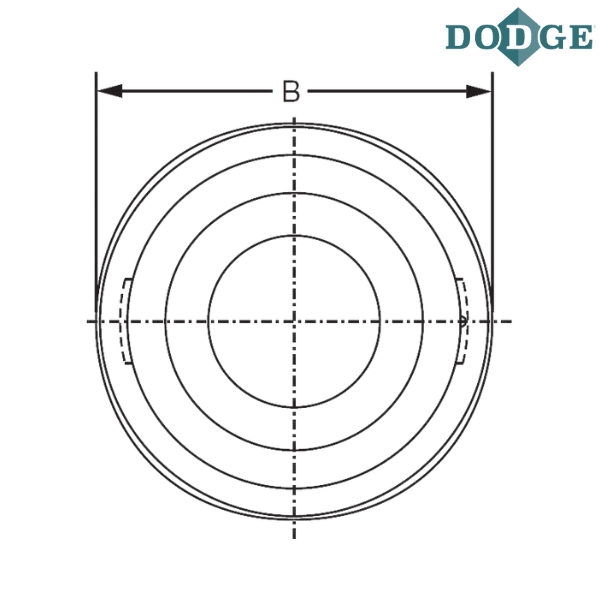

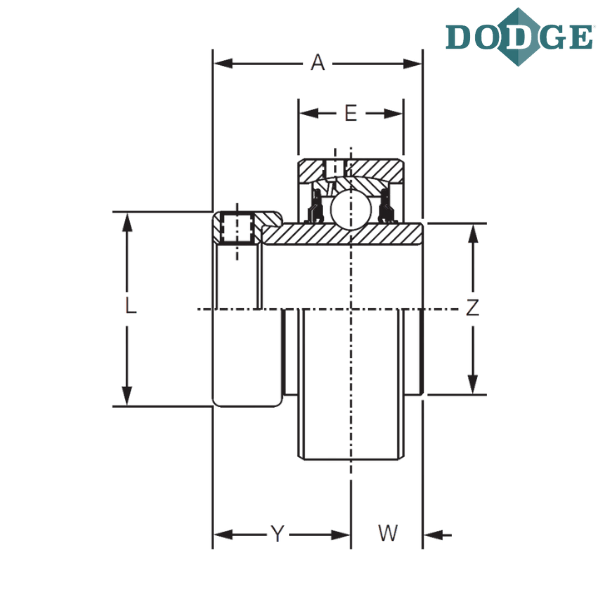

A (mm) - 69.6
B (mm) - 127.89
C (mm) - 25.9
D (mm) - 110
E (mm) - 39.4
J (mm) - 6.4
L (mm) - 84.1
N (mm) - M12x1.75
W (mm) - 22.9
Y (mm) - 46.7
Z (mm) - 75.4

Notes :
INS - Insert
SXR - Wide inner ring, normal duty, Eccentric locking Collar
H - High backing height
M - Metric
E - Expansion

** Images are for representation purposes only
