Description
Brand - DODGE
Item Number - DODGE - INS-SCH-60M-E
Category - Setscrew Ball Bearings (SCH-E Expansion Normal Duty Bearing Insert)
Series - 212
Shaft Size (mm) - 60
Description - INS-SCH-60M-E
Weight - Expansion (kg) - 2.04

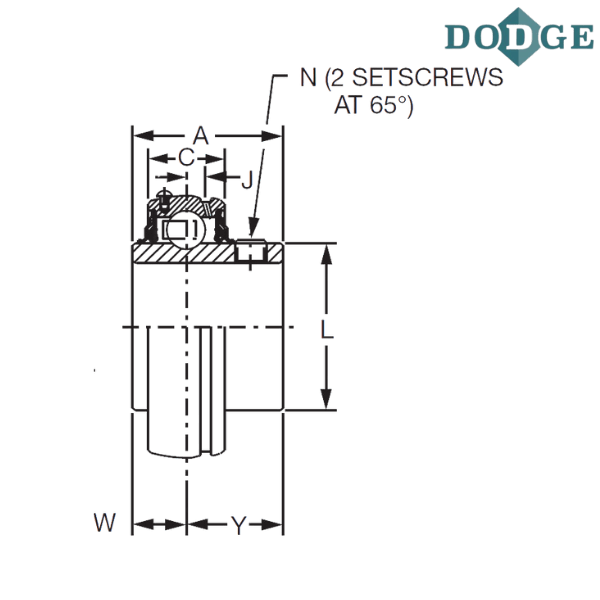

A (mm) - 58.7
B (mm) - 127.89
C (mm) - 25.9

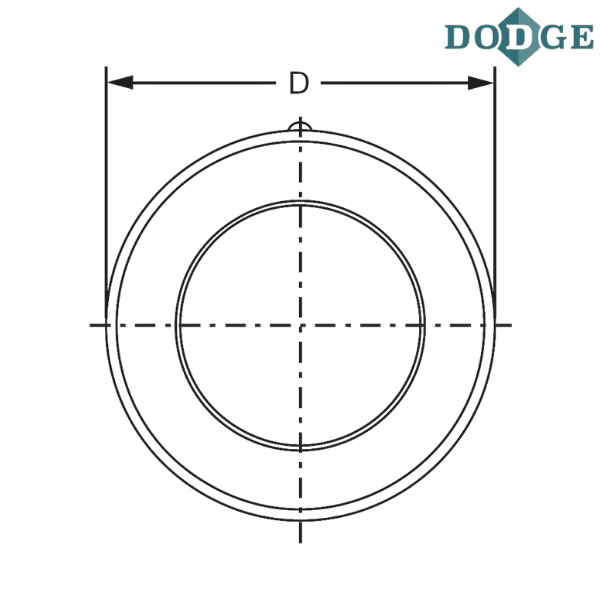

D (mm) - 110
E (mm) - 39.4
J (mm) - 6.4
L (mm) - 75.4
N (mm) - M10x1.5
W (mm) - 22.9
Y (mm) - 35.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
SC - Wide inner ring, normal duty, 65° setscrew locking
H - High backing height
M - Metric
E - Expansion

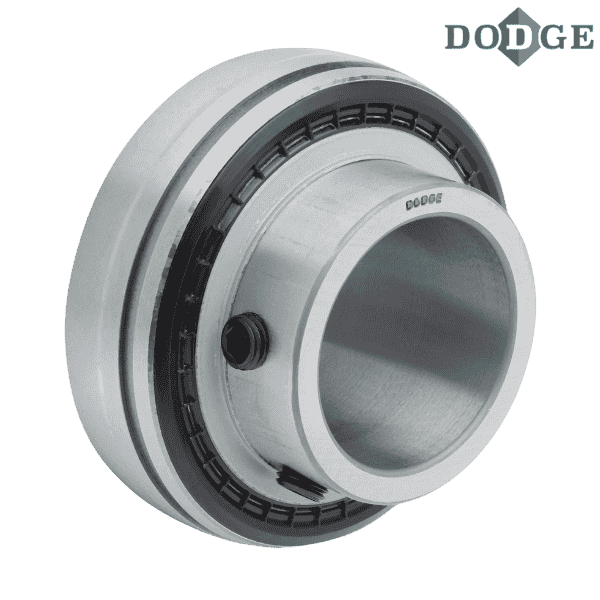

** Images are for representation purposes only
