Description

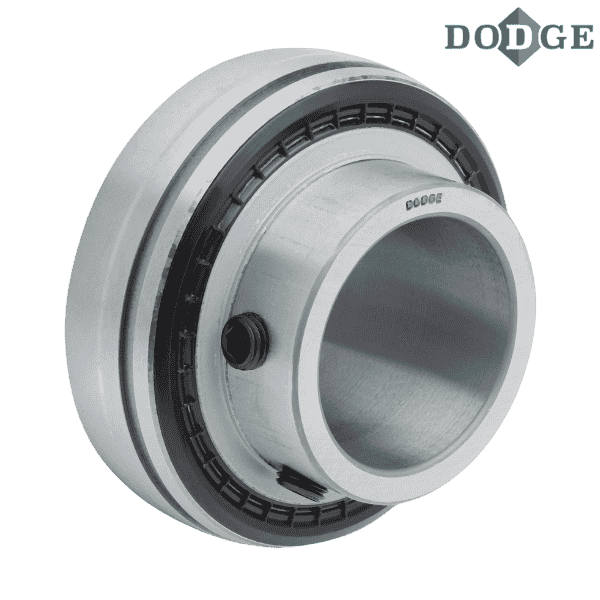

Brand - DODGE
Item Number - DODGE - INS-SCH-55M-E
Category - Setscrew Ball Bearings (SCH-E Expansion Normal Duty Bearing Insert)
Series - 211
Shaft Size (mm) - 55
Description - INS-SCH-55M-E
Weight - Expansion (kg) - 1.53

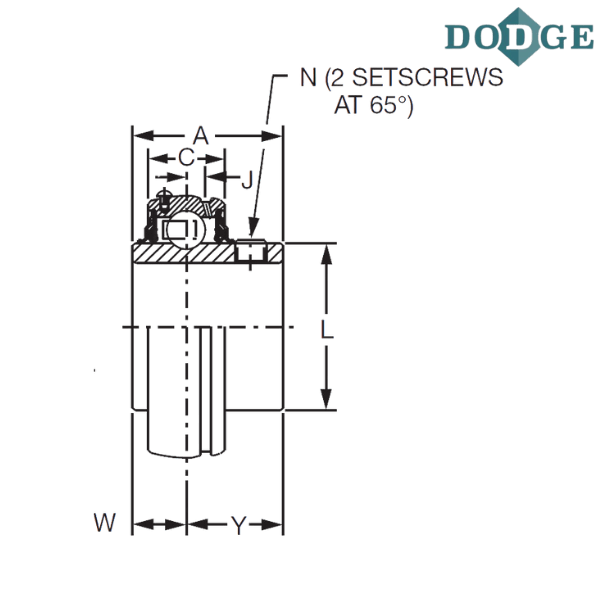

A (mm) - 56.4
B (mm) - 113.67
C (mm) - 23.9

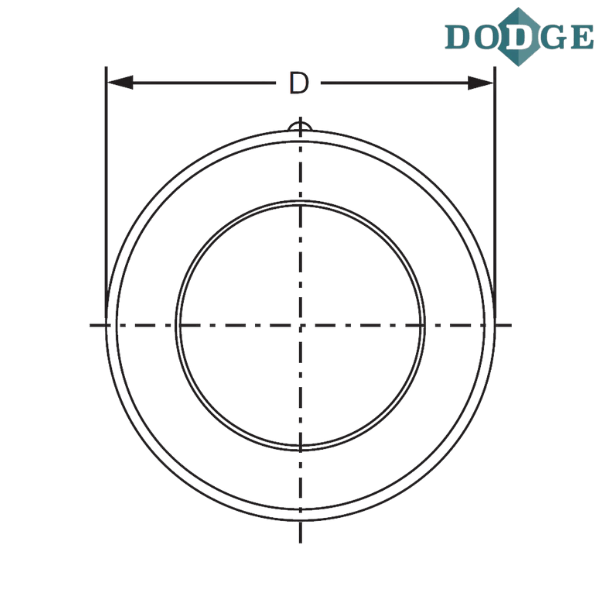

D (mm) - 100
E (mm) - 35.1
J (mm) - 6.4
L (mm) - 68.8
N (mm) - M10x1.5
W (mm) - 22.1
Y (mm) - 34.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
SC - Wide inner ring, normal duty, 65° setscrew locking
H - High backing height
M - Metric
E - Expansion
** Images are for representation purposes only
