Description
Brand - DODGE

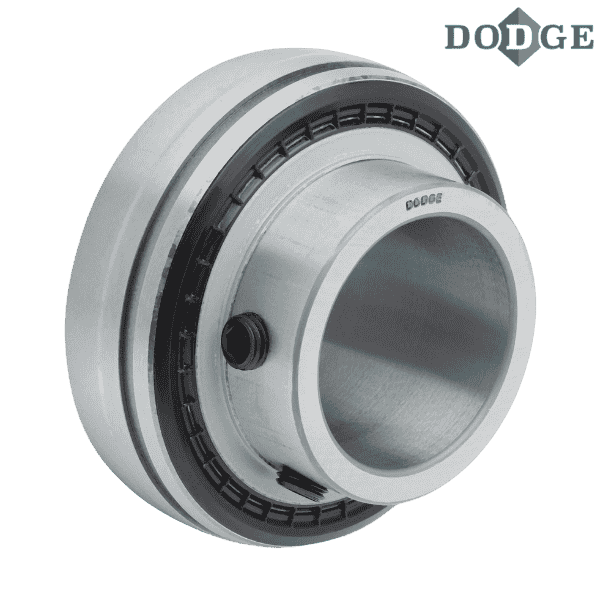

Item Number - DODGE - INS-SCH-50M-E
Category - Setscrew Ball Bearings (SCH-E Expansion Normal Duty Bearing Insert)
Series - 210
Shaft Size (mm) - 50
Description - INS-SCH-50M-E
Weight - Expansion (kg) - 1.13

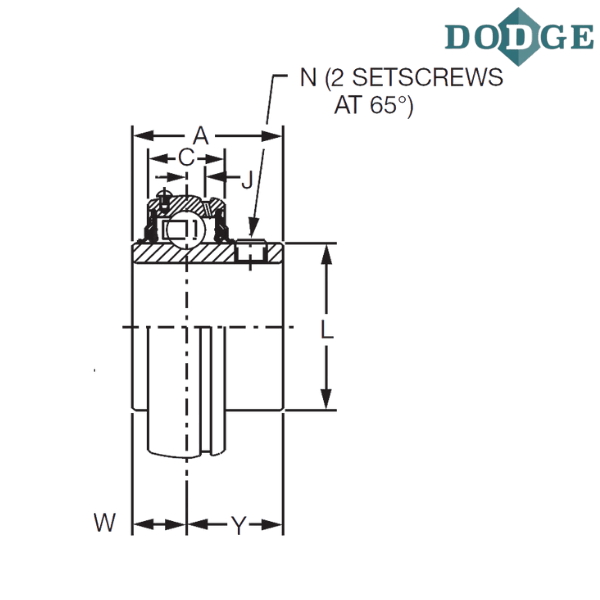

A (mm) - 49.3
B (mm) - 101.6
C (mm) - 22.1

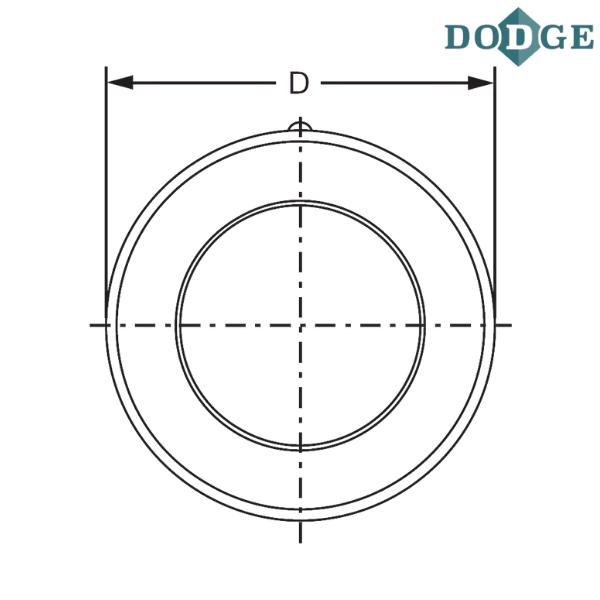

D (mm) - 90
E (mm) - 34.5
J (mm) - 6.4
L (mm) - 61.7
N (mm) - M10x1.5
W (mm) - 19.1
Y (mm) - 30.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
SC - Wide inner ring, normal duty, 65° setscrew locking
H - High backing height
M - Metric
E - Expansion
** Images are for representation purposes only
