Description
Brand - DODGE
Item Number - DODGE - INS-SCED-90M
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty Bearing Inserts)
Series - 218
Shaft Size (mm) - 90
Description - INS-SCED-90M
Weight (kg) - 3.3

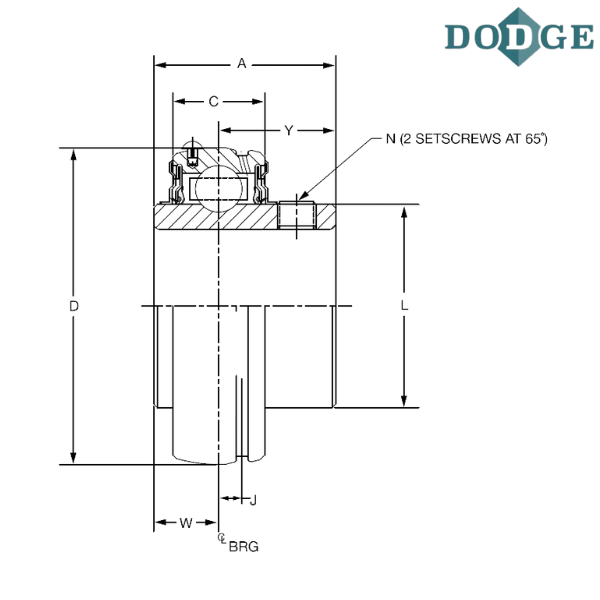

Overall Width (A) mm - 65
C (mm) - 34
Overall Outer Diameter (D) mm - 160
J (mm) - 7.6
L (mm) - 110.5
N - M10x1.5
W (mm) - 24.4
Y (mm) - 40.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
SCED - Extreme duty
M - Metric

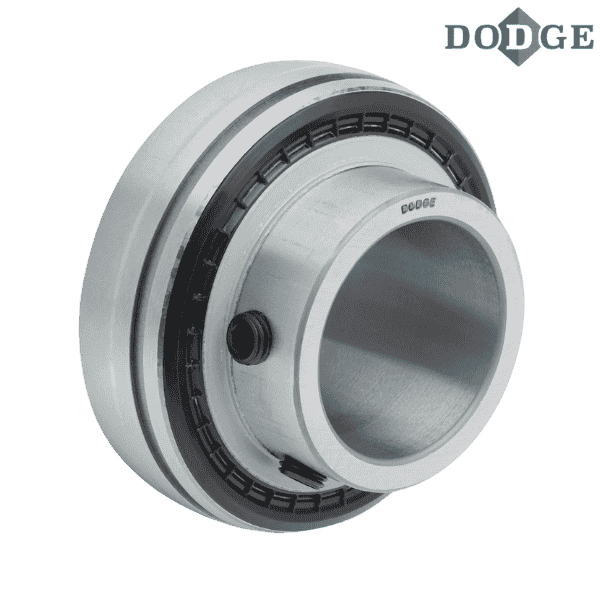

** Images are for representation purposes only
