Description
Brand - DODGE
Item Number - DODGE - INS-SCED-110L
Category - Extreme Duty Setscrew Ball Bearings (SCMED Medium Duty Bearing Inserts)
Series - 209
Shaft Size (inch) - 1.625
Description - INS-SCED-110L
Weight (lbs) - 1.49

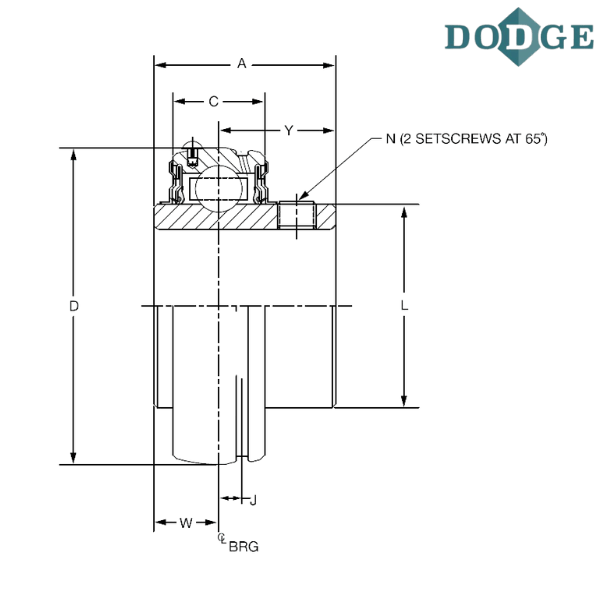

Overall Width (A) inch - 1.94
C (inch) - 0.87
Overall Outer Diameter (D) inch - 3.3465
J (inch) - 0.25
L (inch) - 2.22
N (inch) - 0.3125-24
W (inch) - 0.75
Y (inch) - 1.19
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
SCED - Extreme duty
L - Next larger ring size

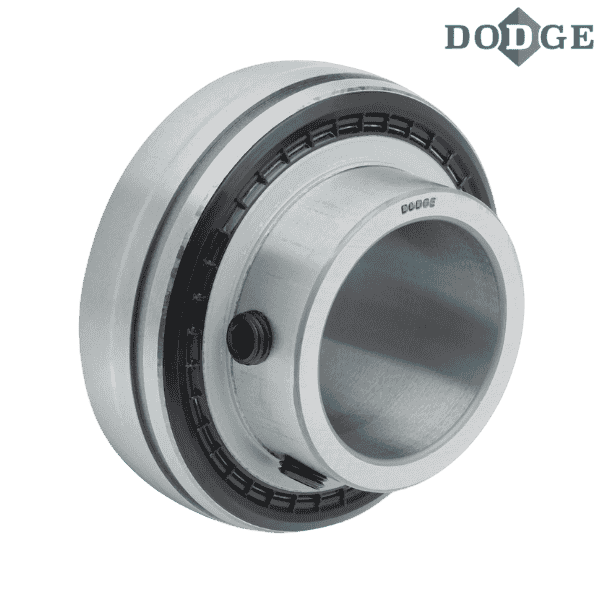

** Images are for representation purposes only
