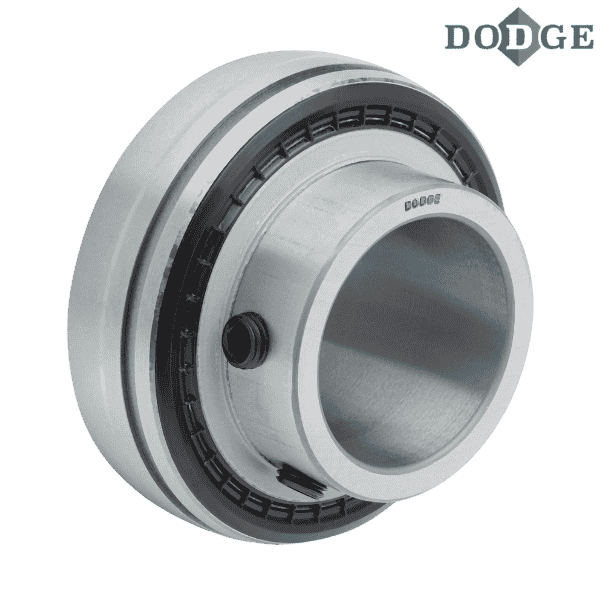

DODGE - INS-SC-45M-FF


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - INS-SC-45M-FF
Category - E-Z KLEEN Mounted Bearings (SC Normal Duty Bearing Corrosion Resistant Inserts)
Series - 209
Shaft Size (mm) - 45
Description - INS-SC-45M-FF
Part Number (Corrosion Resistant Insert) - 125005
Description (Corrosion Resistant Insert) - INS-SC-45M-CR
Weight (kg) - 0.62

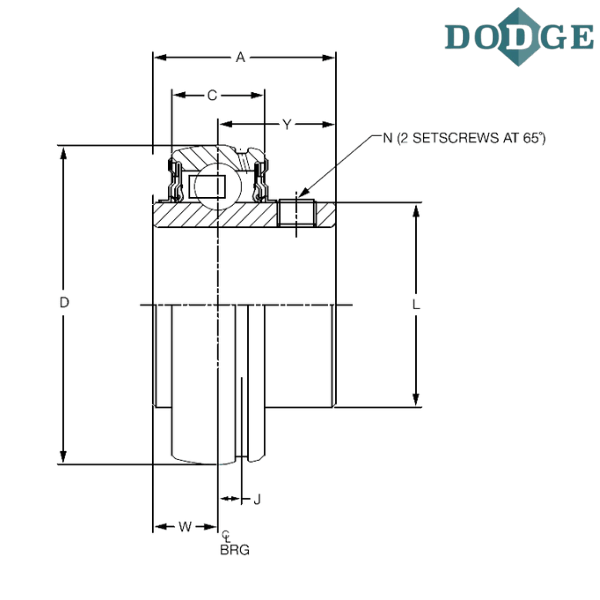

Length Through Bore (A) mm - 49.3
C (mm) - 22.1
Overall Outer Diameter (D) mm - 85
J (mm) - 6.4
L (mm) - 56.4
N (mm) - M8x1.25
W (mm) - 19.1
Y (mm) - 30.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric

** Images are for representation purposes only
