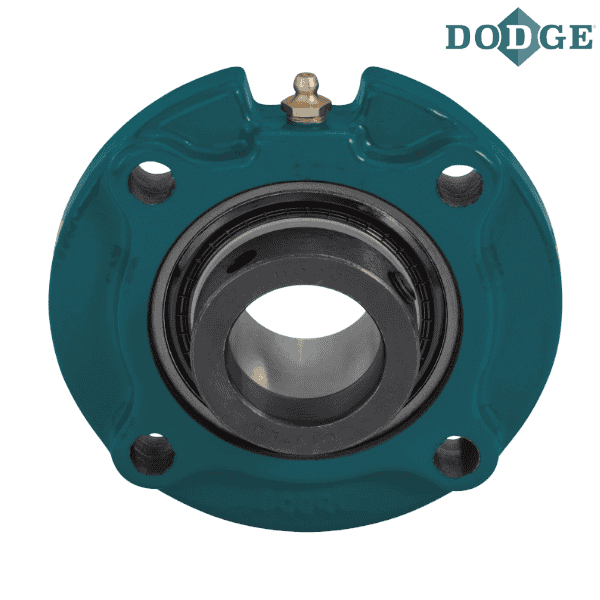

DODGE - FC-SXV-115


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - FC-SXV-115
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty Piloted Bearings)
Series - 210
Shaft Size (inch) - 1.9375
Description - FC-SXV-115
Weight (lbs) - 6.4

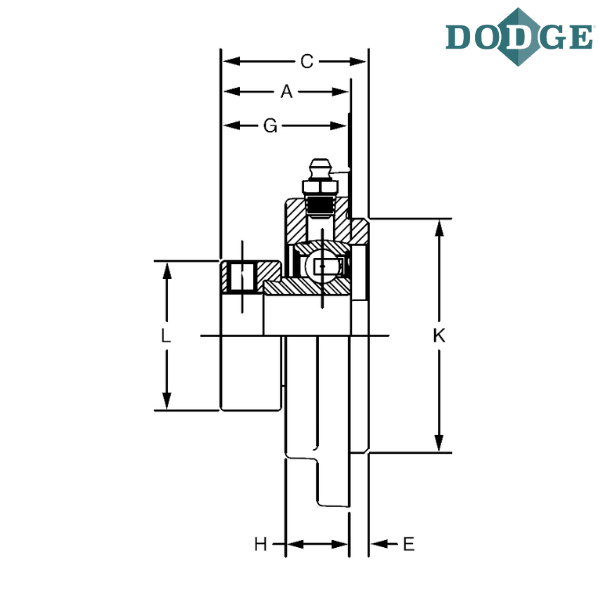

Length Through Bore (A) inch - 1.72

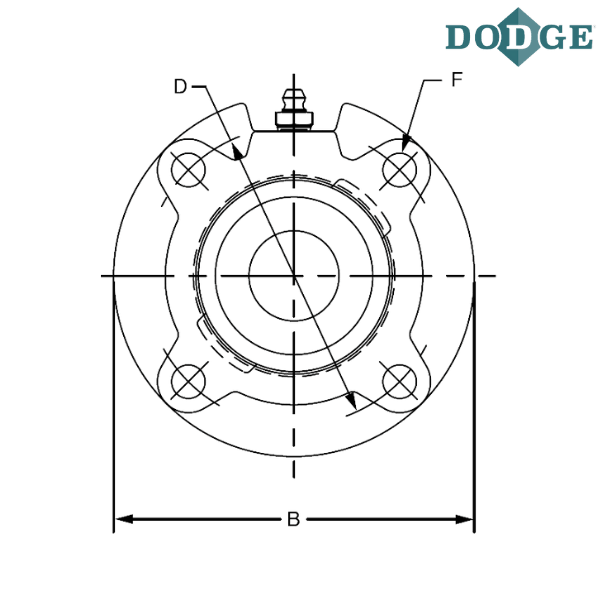

Overall Length (B) inch - 6.13
Thickness (C) inch - 2.07
Bolt Circle (D) inch - 5.13
Pilot Depth (E) inch - 0.47
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.6
H (inch) - 0.92
Pilot Diameter (K) inch - 4.250/4.248
L (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

** Images are for representation purposes only
