Description
Brand - DODGE
Item Number - DODGE - FC-SXR-110
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Piloted Flange Bearings)
Series - 209
Shaft Size (inch) - 1.625
Description - FC-SXR-110
Weight (lbs) - 6.1

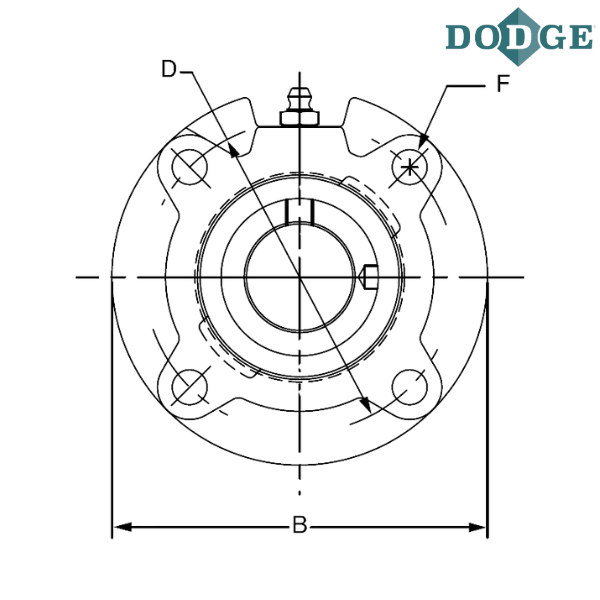

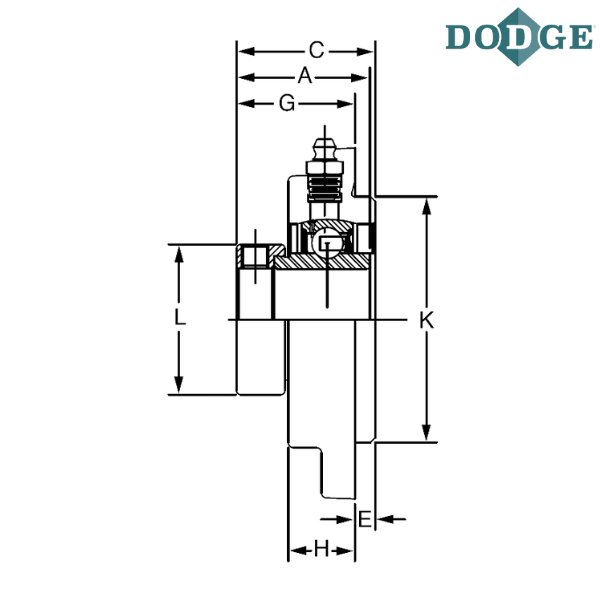

Length Through Bore (A) inch - 2.13
Overall Length (B) inch - 5.75
Thickness (C) inch - 2.14
Bolt Circle (D) inch - 4.75
Pilot Depth (E) inch - 0.44
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.7
H (inch) - 0.91
Pilot Diameter (K) inch - 4.000/3.998
L (inch) - 2.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge
SXR - Wide inner ring, normal duty, Eccentric locking Collar

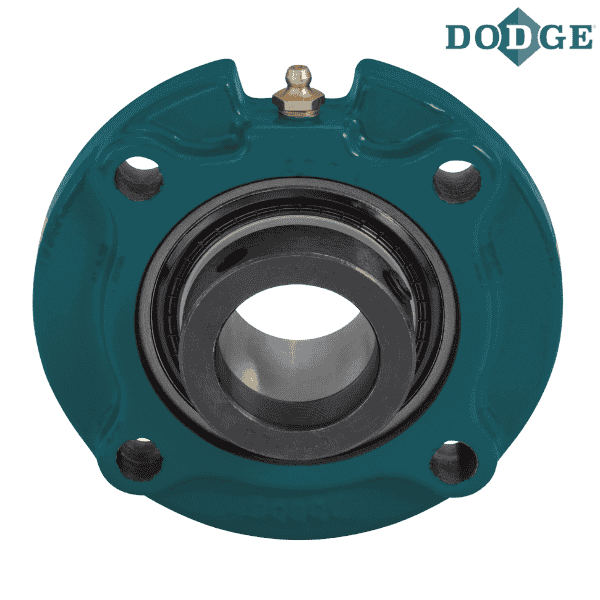

** Images are for representation purposes only
