Description
Brand - DODGE
Item Number - DODGE - FC-SXR-102
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Piloted Flange Bearings)
Series - 206
Shaft Size (inch) - 1.125
Description - FC-SXR-102
Weight (lbs) - 3.4

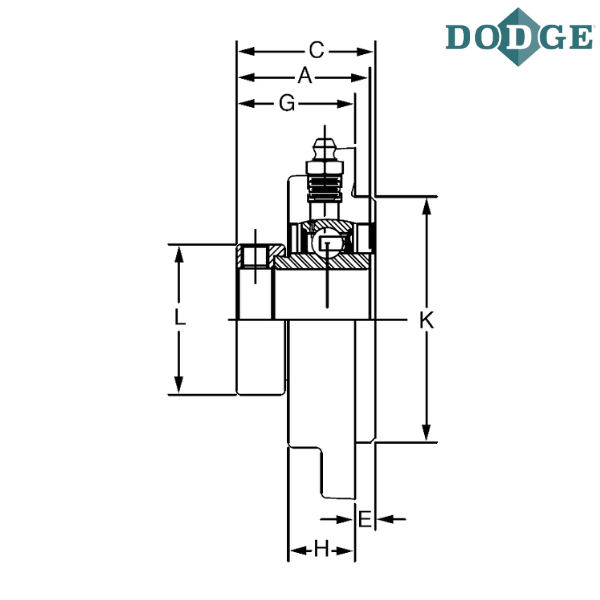

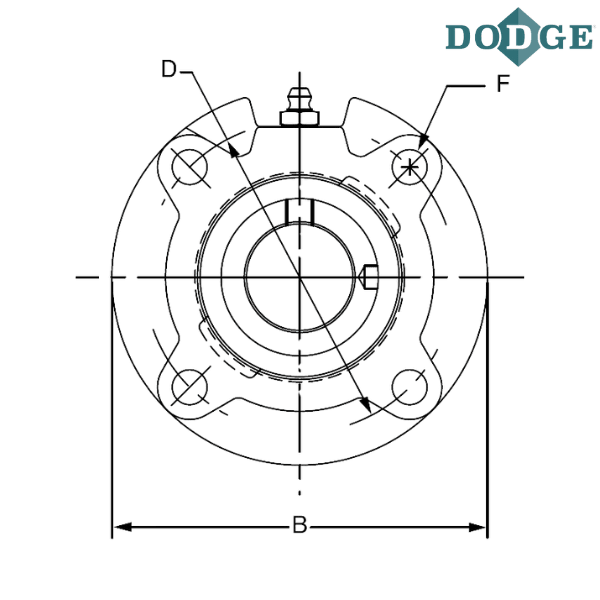

Length Through Bore (A) inch - 1.77
Overall Length (B) inch - 4.38
Thickness (C) inch - 1.78
Bolt Circle (D) inch - 3.63
Pilot Depth (E) inch - 0.25
F-Bolt Diameter (inch) - 0.375
G (inch) - 1.53
H (inch) - 0.81
Pilot Diameter (K) inch - 3.000/2.998
L (inch) - 1.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge
SXR - Wide inner ring, normal duty, Eccentric locking Collar

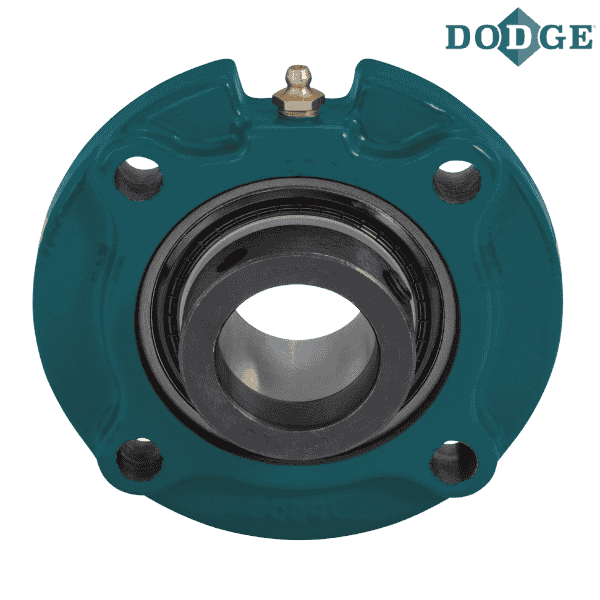

** Images are for representation purposes only
