DODGE - F4B-SCMEZ-111-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - F4B-SCMEZ-111-SHCR
Category - E-Z KLEEN Mounted Bearings (SCEZ Normal Duty Stainless Steel 4-Bolt Flange Bearings)
Series - 210
Shaft Size (inch) - 1.6875
Description - F4B-SCMEZ-111-SHCR
Description (With Insert With Flingers) - F4B-SCMEZ-111-SH
Weight (lbs) - 4.64

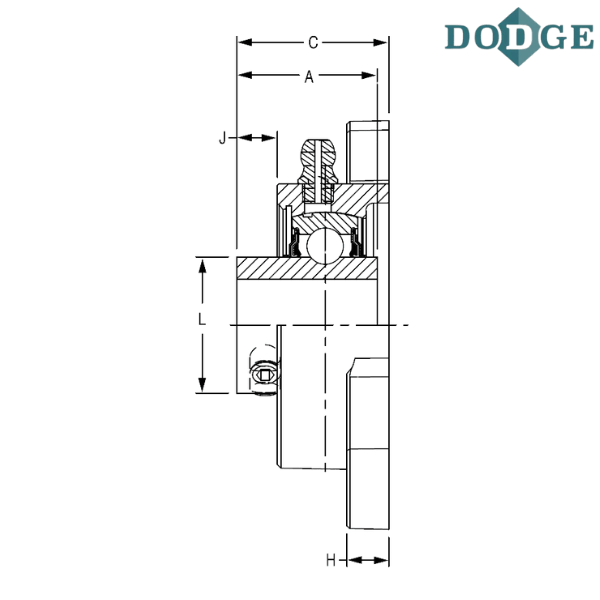

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.67
Thickness (C) inch - 1.98
Bolt Center to Center Length (D) inch - 4.37
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.49
J (inch) - 0.62
L (inch) - 2.43
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
