Description
Brand - DODGE
Item Number - DODGE - F4B-SCED-105
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty 4-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.3125
Description - F4B-SCED-105
Weight (lbs) - 3.9

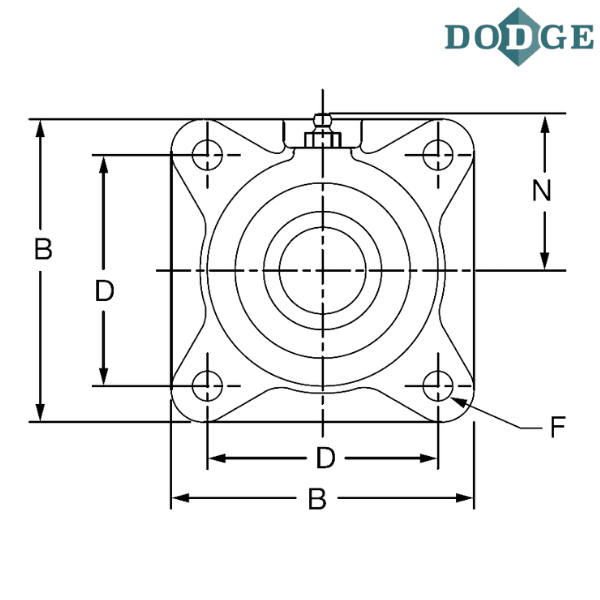

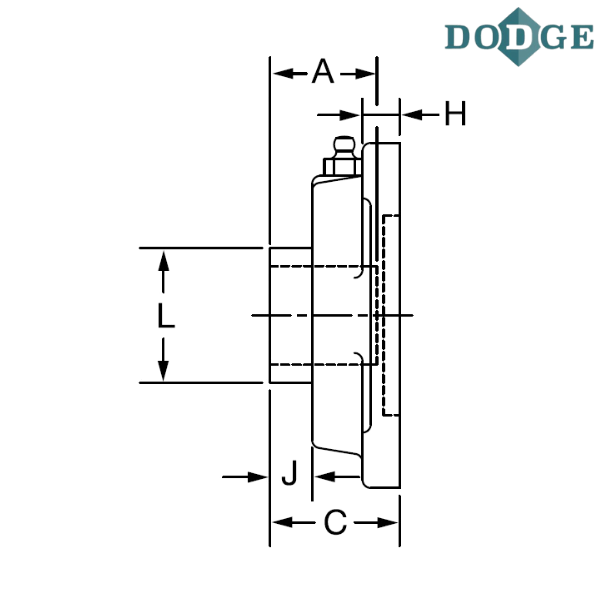

Length Through Bore (A) inch - 1.71
Overall Length (B) inch - 4.75
Thickness (C) inch - 1.75
Bolt Center to Center Length (D) inch - 3.63
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.56
J (inch) - 0.53
L (inch) - 1.84
N (inch) - 2.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
SCED - Extreme duty

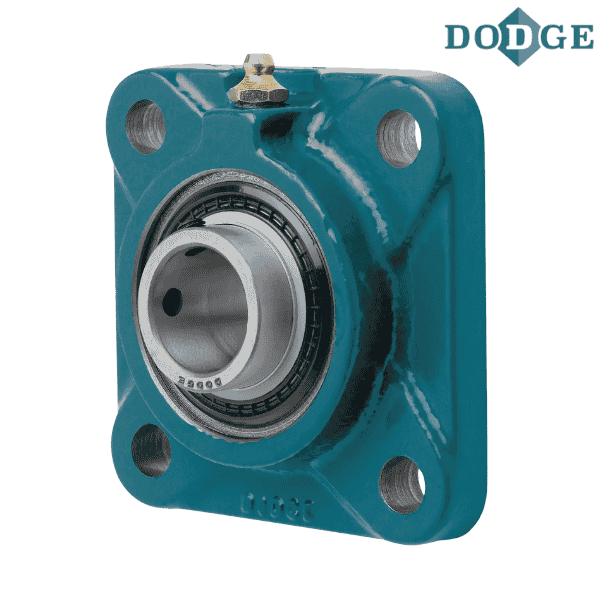

** Images are for representation purposes only
