Description
Brand - DODGE
Item Number - DODGE - F4B-SCAH-55M
Category - Setscrew Ball Bearings (SCAH Normal Duty Air Handling 4-Bolt Flange Bearings)
Series - 211
Shaft Size (mm) - 55
Description - F4B-SCAH-55M
Weight (kg) - 4.1

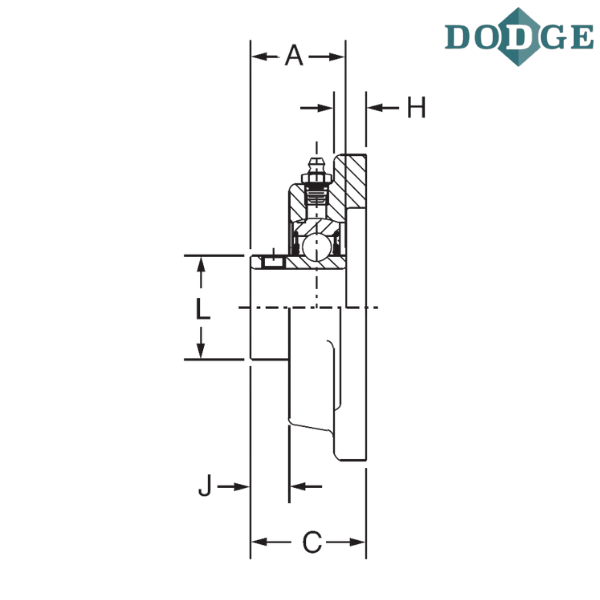

Length Through Bore (A) mm - 56.4

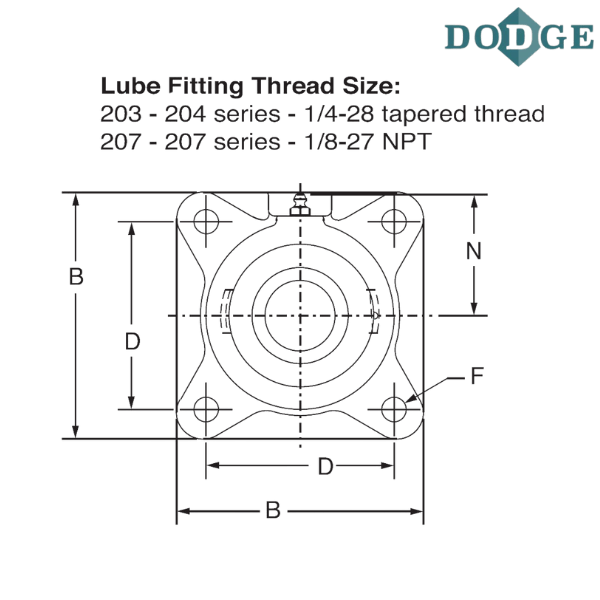

Overall Length (B) mm - 165.1
Thickness (C) mm - 57.9
Bolt Center to Center Length (D) mm - 130.2
F-Bolt Diameter - M16
H (mm) - 17.5
J (mm) - 17.3
L (mm) - 68.8
N (mm) - 82.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
AH - Air handling
M - Metric

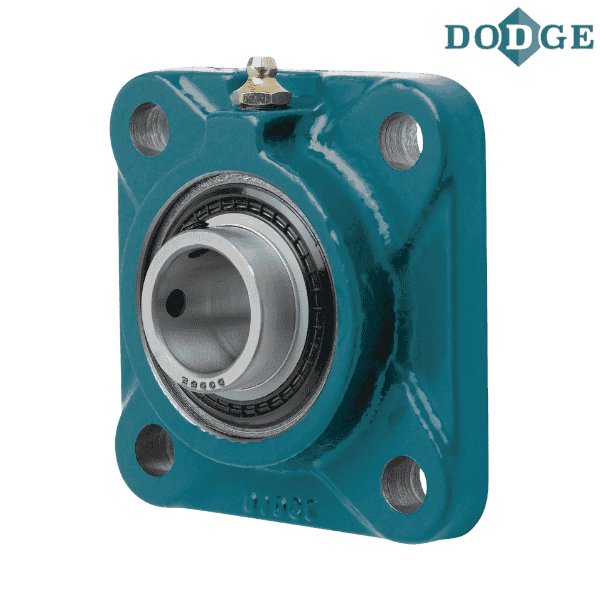

** Images are for representation purposes only
