DODGE - F2BZ-SXV-100

Brand - DODGE
Item Number - DODGE - F2BZ-SXV-100
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Piloted Flange Bearings)
Series - 205
Shaft Size (inch) - 1
Description - F2BZ-SXV-100
Weight (lbs) - 1.4

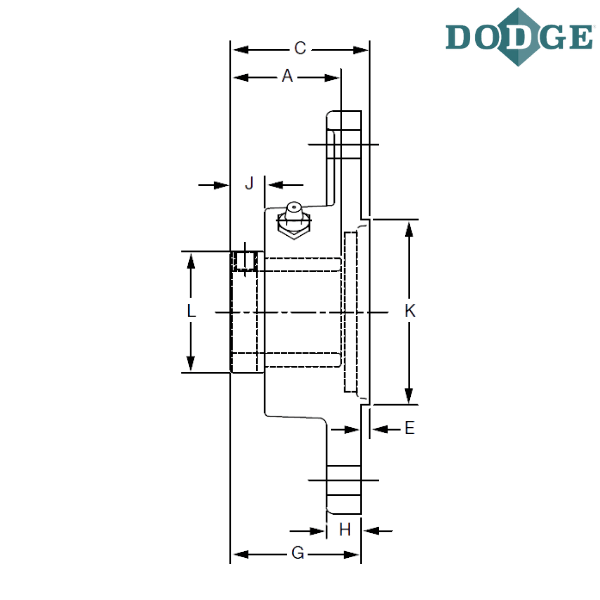

Length Through Bore (A) inch - 1.22

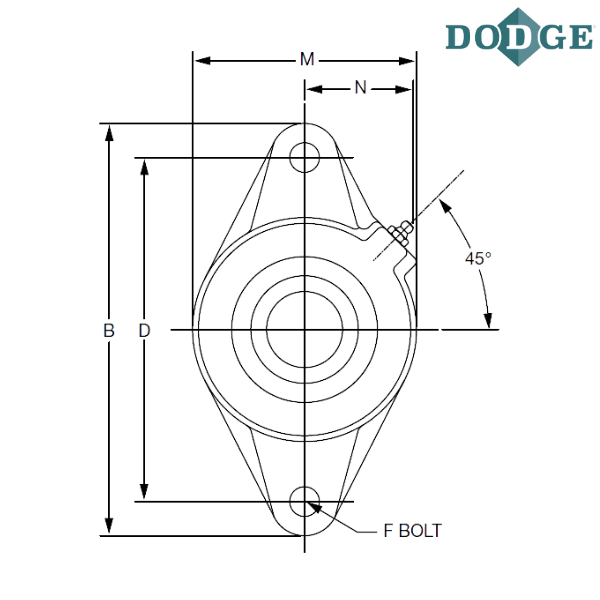

Overall Length (B) inch - 4.88
Thickness (C) inch - 1.65
Bolt Center to Center Length (D) inch - 3.89
Pilot Depth (E) inch - 0.14
F-Bolt Diameter (inch) - 0.4375
G (inch) - 1.51
H (inch) - 0.52
J (inch) - 0.56
Pilot Diameter (K) inch - 2.362/2.360
L (inch) - 1.5
Overall Width (M) inch - 2.75
N (inch) - 1.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

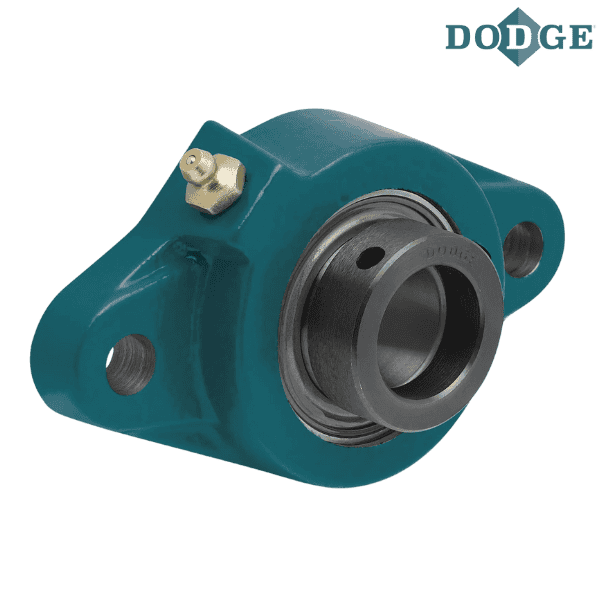

** Images are for representation purposes only
