Description
Brand - DODGE
Item Number - DODGE - F2BZ-SXR-110L
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 209
Shaft Size (inch) - 1.625
Description - F2BZ-SXR-110L
Weight (lbs) - 4.7

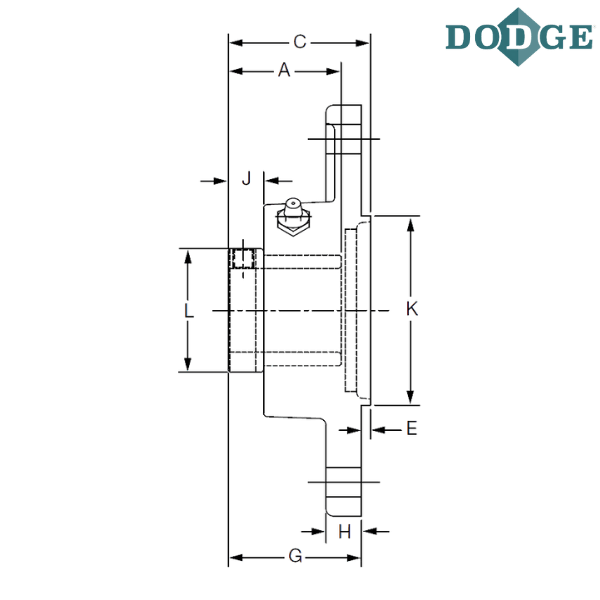

Length Through Bore (A) inch - 2.13

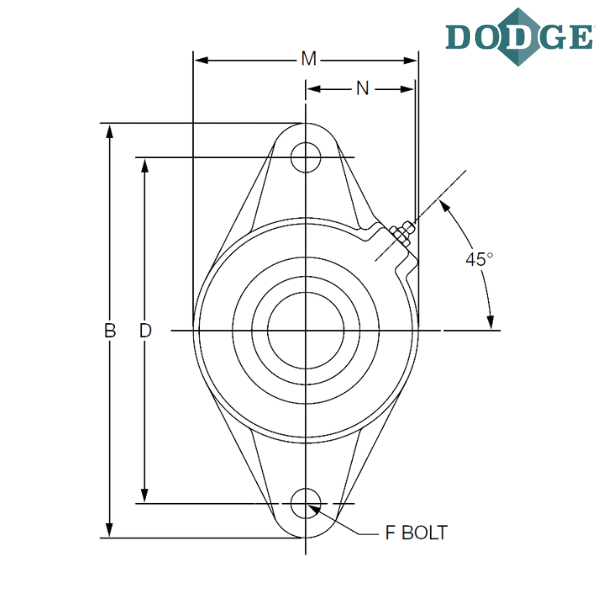

Overall Length (B) inch - 7.06
Thickness (C) inch - 2.34
Bolt Center to Center Length (D) inch - 5.84
Pilot Depth (E) inch - 0.16
F-Bolt Diameter (inch) - 0.5
G (inch) - 2.18
H (inch) - 0.63
J (inch) - 0.77
Pilot Diameter (K) inch - 4.134/4.132
L (inch) - 2.5
M (inch) - 4.38
N (inch) - 1.91
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXR - Wide inner ring, normal duty, Eccentric locking Collar
L - Next larger ring size

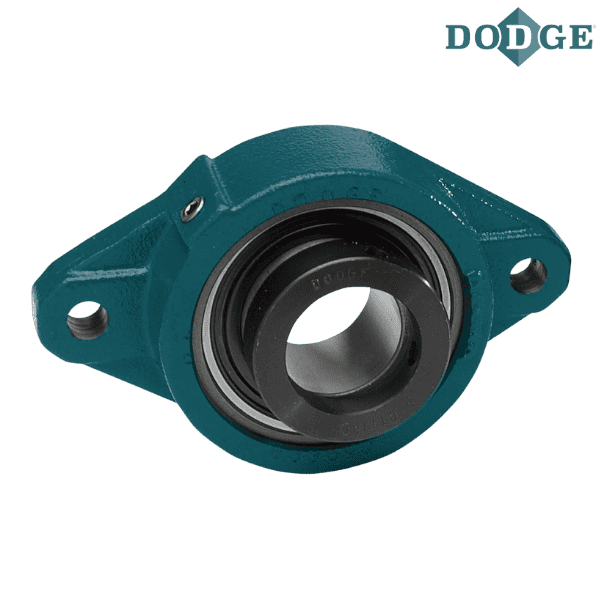

** Images are for representation purposes only
