Description
Brand - DODGE
Item Number - DODGE - F2BZ-SXR-015
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 205
Shaft Size (inch) - 0.9375
Description - F2BZ-SXR-015
Weight (lbs) - 1.6

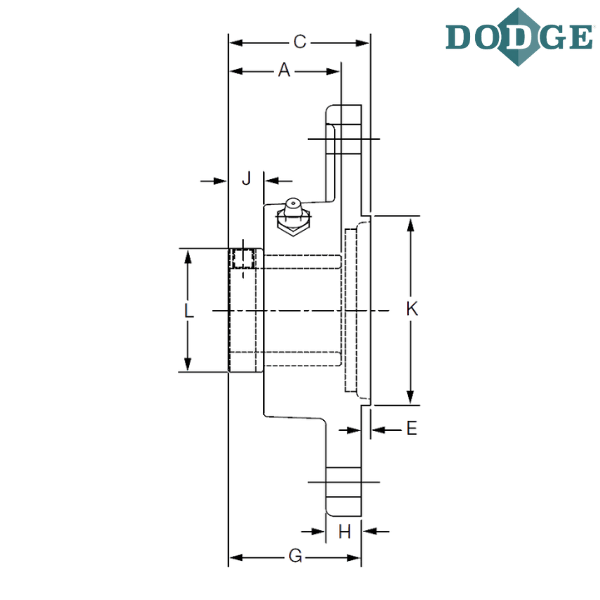

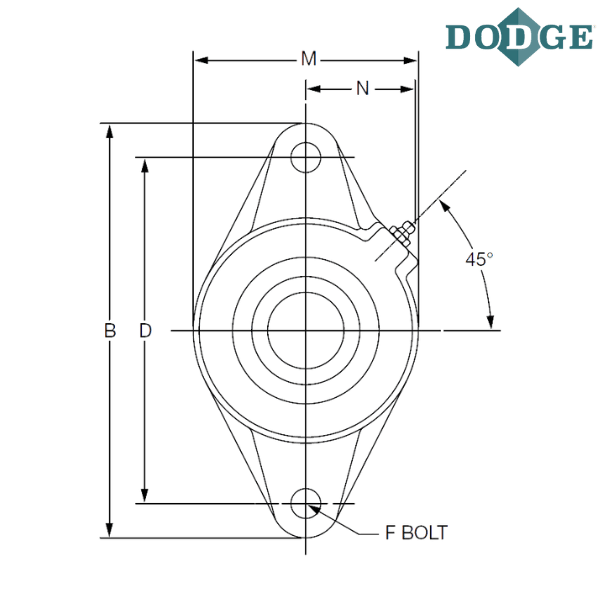

Length Through Bore (A) inch - 1.62
Overall Length (B) inch - 4.88
Thickness (C) inch - 1.79
Bolt Center to Center Length (D) inch - 3.89
Pilot Depth (E) inch - 0.14
F-Bolt Diameter (inch) - 0.4375
G (inch) - 1.65
H (inch) - 0.52
J (inch) - 0.7
Pilot Diameter (K) inch - 2.362/2.360
L (inch) - 1.5
M (inch) - 2.75
N (inch) - 1.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXR - Wide inner ring, normal duty, Eccentric locking Collar

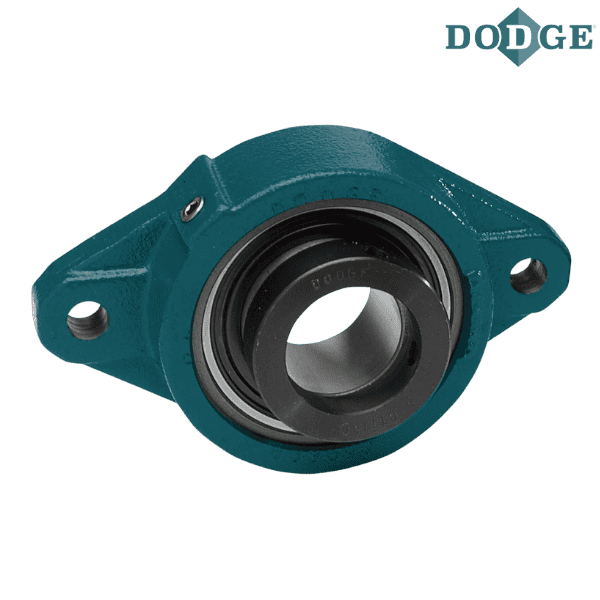

** Images are for representation purposes only
